Vacuum Mayonnaise Ketchup Jam Honey Juice Making Machine Mixing Tank Homogenizer High Viscosity Mixer

High shear homogenizer mixer

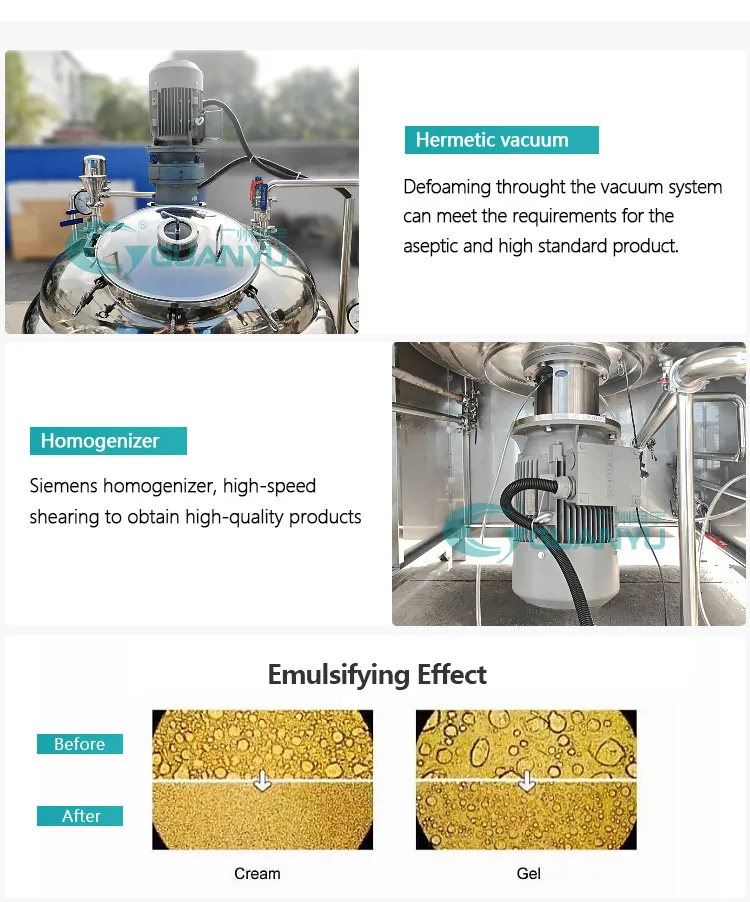

*The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products ofdifferent processes according to customer requirements.*The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energyconsumpion and shorten production period.*The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , whichfully conforms to GMP requirements.*According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electricheating. Easy to discharge , bottom direct discharge or by transfer pump.
Model
|
Working Volume(L)
|
Blending power(kw)
|
Blending rotation speed(r/min)
|
Homogenizing power(kw)
|
Homogenizing rotation speed(r/min)
|
Heating method
|
GYM-200
|
200
|
1.5
|
0-63
|
4.0
|
0~3200
|
Steam heating Or Electric heating
|
GYM-500
|
500
|
3.0
|
0-63
|
7.5
|
0~3200
|
|
GYM-1000
|
1000
|
4.0
|
0-63
|
11
|
0~3200
|
|
GYM-1500
|
1500
|
5.5
|
0-63
|
11-15
|
0~3200
|
|
GYM-2000
|
2000
|
7.5
|
0-63
|
15-18.5
|
0~3200
|
|
GYM-3000
|
3000
|
7.5-11
|
0-63
|
18.5-22
|
0~3200
|
|
GYM-5000
|
5000
|
11-15
|
0-63
|
18.5-22
|
0~3200
|
Product configuration
Specification
|
Working Volume(L)
|
Heating Method(optional)
|
Dimension(L*W*H)(m)
|
Weight(kg)
|
GYE-50
|
50
|
Electric heating or steam heating
|
2.6*2.4*2
|
650
|
GYE-100
|
100
|
2.8*2.5*2.2
|
850
|
|
GYE-200
|
200
|
3*2.8*2.3
|
1100
|
|
GYE-500
|
500
|
3.3*3*2.5
|
1500
|
|
GYE-1000
|
1000
|
4.2*3.5*3.8
|
2500
|
