2021 Direct factory sale stainless steel 5000l water storage tank price

2020 Direct factory sale stainless steel 5000l water storage tank price

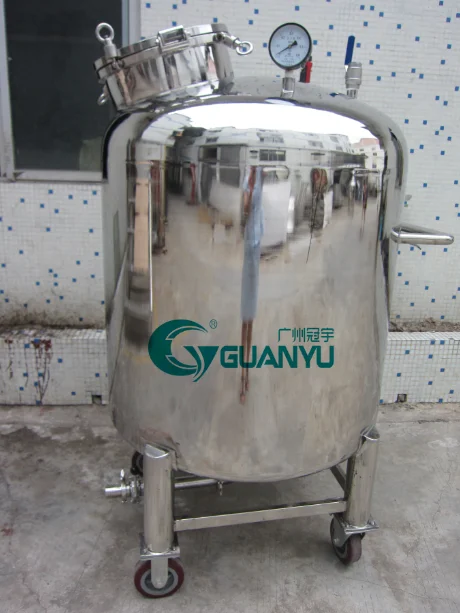

Description:A) The series tank has the functions of heating and heat preservation, manufactured, pressure-tested and checked in accordance with the . B) The standard specifications from 50L to 5000L, and we can design and make as per customer’s special requirements. C) The joint is of quick-acting type in compliance with ISO standard. The inner tank is made of stainless steel 316L or 304. D) On the tank’s boby has respectively fluid level gauge(the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening, the rmometer(digital-indicated type or dial type), CIP universal tank-cleaning device, viewing mirror at lamp hole, some fluid inlets & outlets and herringbone hole.

Configuration:A) Foldable micro pore film air filter(filtration of bacteria of 45 μm and above) B) Leakage-proof device(100%) C) Interface for liquid level (static-pressure sensor type, supersonic type and glass tube level meter for altemative) D) Interface of thermometer (temperature sensor) E) Interface for gas exhaust and security valve(connected to breathing apparatus accompanied by aseptic filtration )Aseptic air interface for sterilization with steam and filtration F) Cleaning ball (rotating for 360° Under low pressure ) G) Inlet and outlet for medicine liquid (quick-acting installation type) H) Elliptic manhole I) Viewing mirror J) Lamp hole

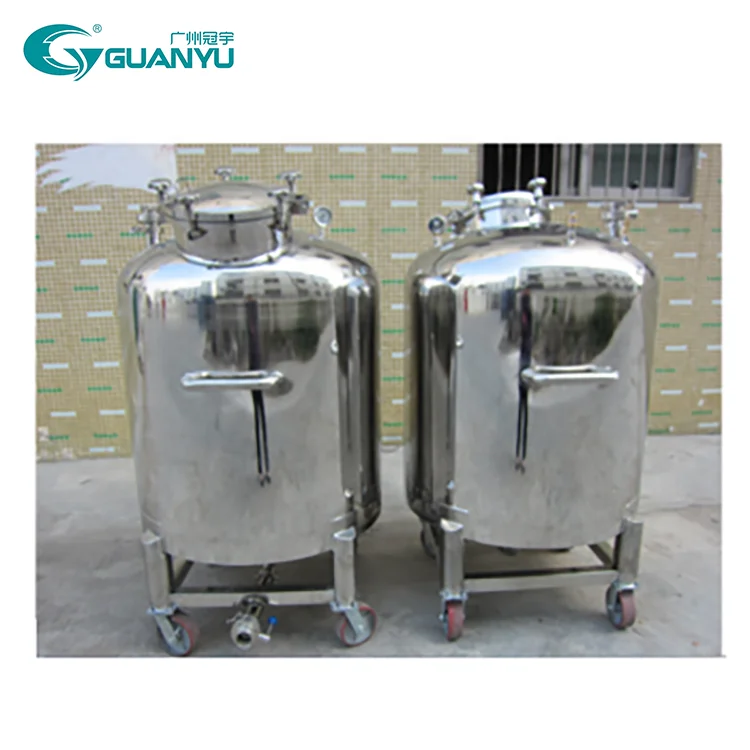

All kinds of tank for your choice (Can be customized):

We have various storage tank,such as sealed storing tank,mobile storage tank,water bath glue pot,storage tank,tank with agitalor,vacuum storage tank,normal tank,etc.Also we provide make-to-order services. Welcome to contact us!
