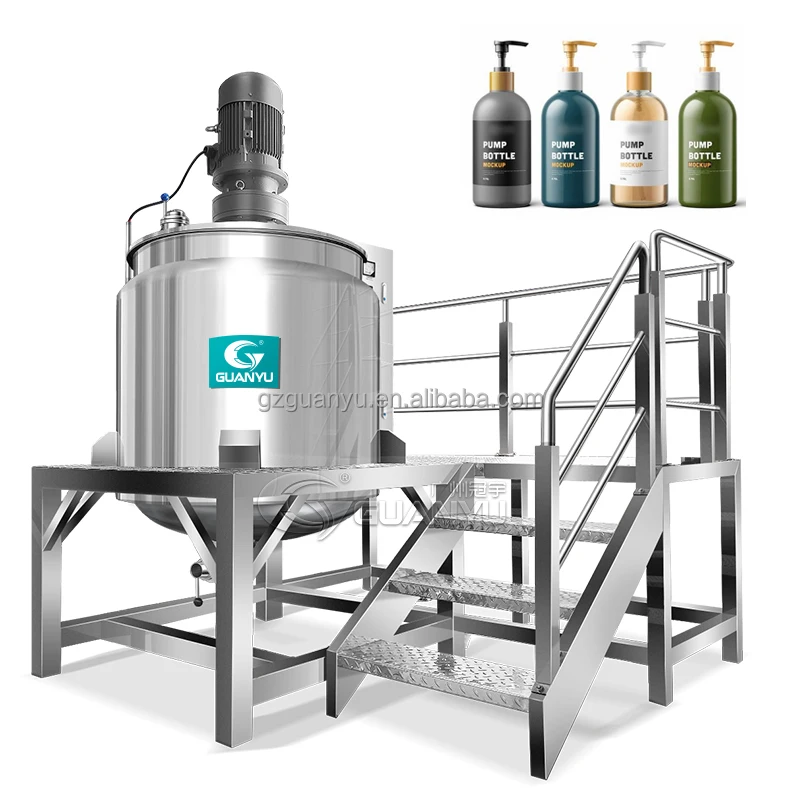

500l Open Lid Stainless Steel Liquid Mixer Shampoo Mixing Chemical Tank Shower Gel Jacket Liquid Soap Mixing Tank With Agitator
500L Open Lid Mixing Tank Shampoo Jacket Agitator Mixing Machine Supplier
◭Stainless Steel Mixing Tank has mixing agitator,bottom homogenizer,stainless steel jacket tank shell,motor,electric control box,operation platform,staircase,etc.
◭The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolvemanyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm,the shear degree is about 0.2~5um.◭The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
◭We can choose PLC automatic control system ,or manual button control box,it depends upon your demand.
Model | Working Capacity (L) | Mixing Power (KW) | Mixing Speed (rpm) | Homogenizing Power(KW) | Homogenizing Speed(rpm) | Heating Method |
GYM-50 | 50 | 0.75 | 0~63 | 1.1~1.5 | 0~3500 | Electric Heating |
GYM-100 | 100 | 1.1 | 0~63 | 1.5~2.2 | 0~3500 | Electric Heating |
GYM-200 | 200 | 1.1~2.2 | 0~63 | 2.2~3.0 | 0~3500 | Electric Heating |
GYM-300 | 300 | 1.5~2.2 | 0~63 | 2.2~3.0 | 0~3500 | Electric Heating |
GYM-400 | 400 | 2.2~4.0 | 0~63 | 3.0~4.0 | 0~3500 | Electric Heating |
GYM-500 | 500 | 4.0~5.5 | 0~63 | 5.5~7.5 | 0~3500 | Electric Heating |
GYM-1000 | 1000 | 4.0~7.5 | 0~63 | 7.5~11 | 0~3500 | Electric Heating/ Steam Heating |
GYM-1500 | 1500 | 5.5~7.5 | 0~63 | 11~15 | 0~3500 | |
GYM-2000 | 2000 | 5.5~7.5 | 0~63 | 15~18.5 | 0~3500 | |
GYM-3000 | 3000 | 11~15 | 0~63 | 18.5~22 | 0~3500 | |
GYM-4000 | 4000 | 15~18.5 | 0~63 | 18.5~22 | 0~3500 | |
GYM-5000 | 5000 | 18.5~22 | 0~63 | 22~30 | 0~3500 |
Customized Mixer

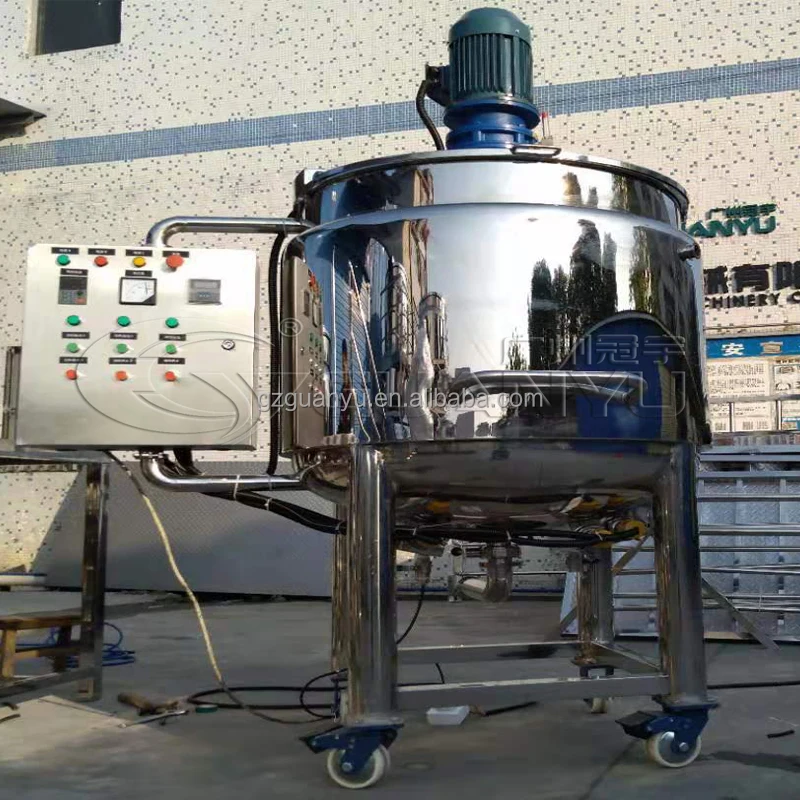

500L Movable Heated Mixing Tank
Electric heating,with scraper type paddle mixing

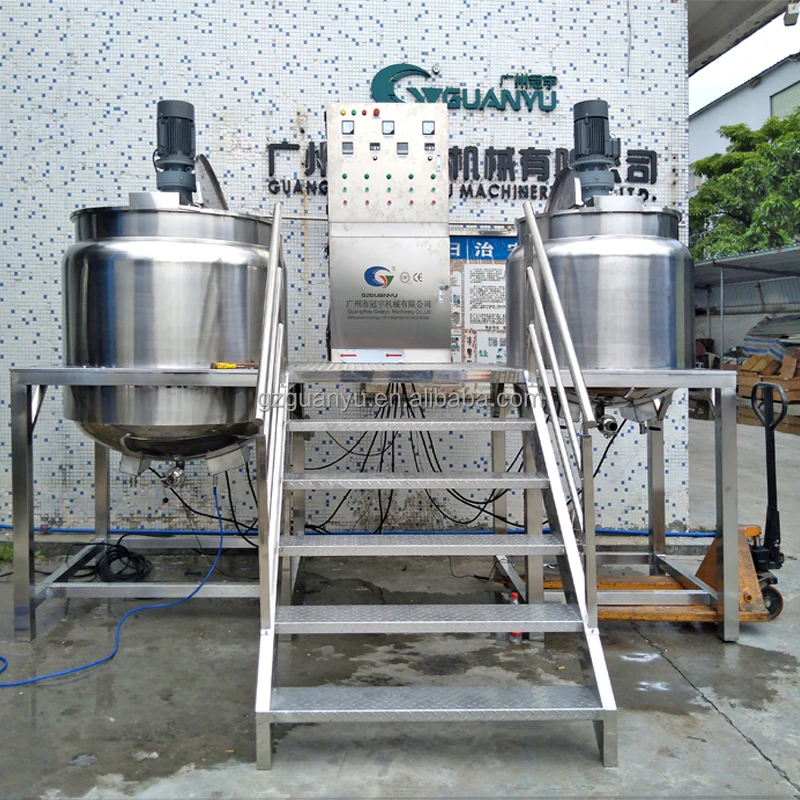

500L+1000L Jacked Heating Mixing Tank
Two mixing tank share one platform,electric control box
5000L Steam Heated Mixing Tank
Steam heating ,with bottom high shear homogenizer,for fast dissolving and mixing
Company Profile
Business License/ CE Certificate /ISO 9001/etc
CE Certificate for Mixer ,Emulsifier,Filling Machine,etc.
Patent Certificates for Mixer, Vacuum Emulsifier Machine,Filling Machine,Facial Mask filing and sealing machine,etc
