Customized 5000L Liquid Detergent Mixing Machine Detergent Production Plant Chemical Liquid Soap Mixing Tank Making Machine

Category

Customized 5000L Liquid Detergent Mixing Machine Detergent Production Plant Chemical Liquid Soap Mixing Tank Making Machine

Products Description
H650b10e401454189adc592e0f237e6aaa

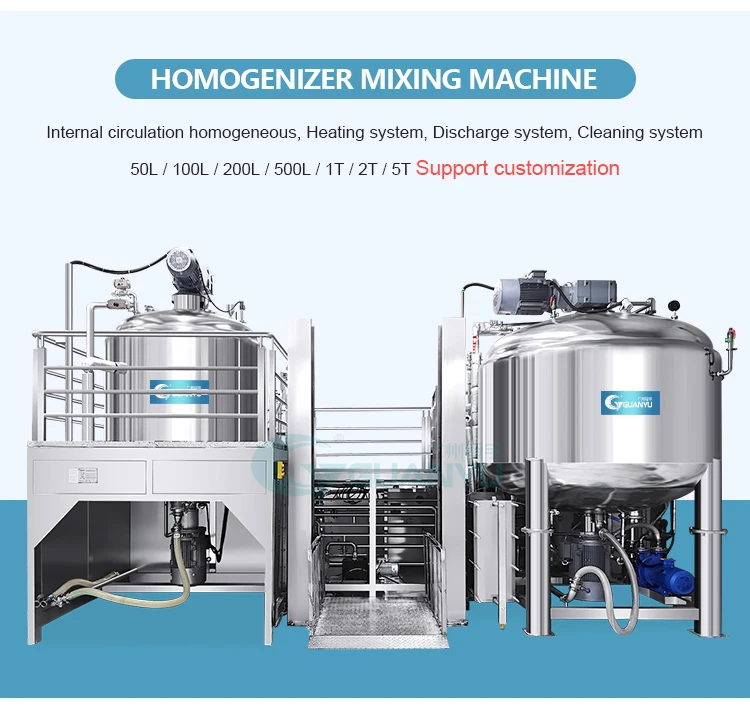

Electric heating bottom homogenizer vacuum emulsifying mixer

Features:1. The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard.2. All pipelines and parameter are controlled automaticlly. And the electric appliance which are imported from foreign country,like Siemens ,Schneider and so on.3. Emulsifying tank is with CIP cleaning system,it make the cleaning to be easy and effective.4.Emulsifying tank adopts tertiary agitating system, and during the emulsification ,the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution.5. The homogenizer adopts the most advanced technology,it can get a ideal emulsifying effect.The speed of high emulsification is 0-3600r/min, and the speed of low mixing is 0-63r/min.

Model
Volume(L)
Blending power(kw)
Blending rotation speed(r/min)
Homogenizing power(kw)
Homogenizing rotation speed(r/min)
Heating method
GYM-200
200
1.5
0~63
4.0
0~3200
Steam heating Or Electric heating
GYM-500
500
3.0
0~63
7.5
0~3200
GYM-1000
1000
4.0
0~63
11
0~3200
GYM-1500
1500
5.5
0~63
11-15
0~3200
GYM-2000
2000
7.5
0~63
15-18.5
0~3200
GYM-3000
3000
7.5-11
0~63
18.5-22
0~3200
GYM-5000
5000
11-15
0~63
18.5-22
0~3200
H9588311c44164cd6843beee0677b4b05Q
H0d89c37f588e4f999bc8cdcae237e6d7c
H50579991edcf402e87d5aa14a0f6db30e

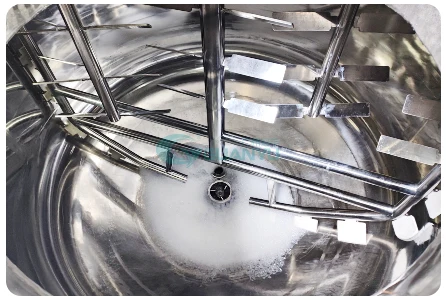

Mixing paddle

Variable frequency speed regulation is 0-62r/min, so that different materials can be mixed evenly. The shape of the mixing paddle will be designed according to your materials
H13dcc5fe399e4c64969b724e26fd0e29X

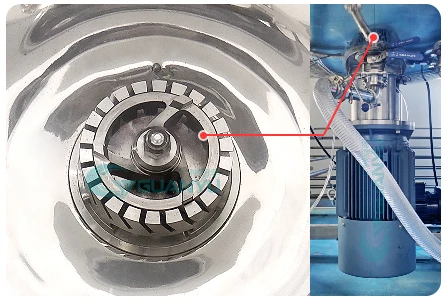

Homogenizer

Frequency conversion speed regulation 0-3200r/min, homogeneous shearing head high-speed shearing materials, so that the materials are completely broken and mixed!

Hb8ce42527a904627bab7d2293cdd2ccer

◭The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products ofdifferent processes according to customer requirements.

reactor stirred tank◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production p reactor stirred tankrocess so as to save energy consumpion and shorten production period.
reactor stirred tank◭The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which fully conforms to GMP requirements. reactor stirred tank
◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump. reactor stirred tank
H459784dc088d4134aad8c4089b215850i

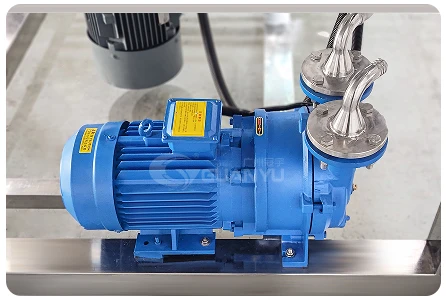

Vacuum Pumps

Under the vacuum environment, the emulsification pot can discharge foam when the materials are mixed, thus improving the quality of the materials to be treated. Vacuum deaeration process can ensure the sterility of materials
H9063ea85dd03474f8e4ba8055b35dfbcT

Plate and frame heat exchanger

Plate heat exchangers can be used in various situations such as heating, cooling, evaporation, condensation, sterilization, waste heat recovery, etc.
H00bef8a3fd614d59b56a4923da5c0d3ep

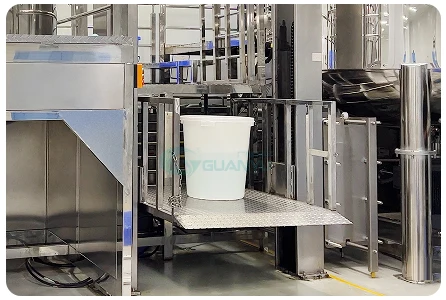

Material hoist

Hydraulic lifting platform with high and durable load-bearing capacity can be used to transport heavy materials to the platform for the next operation.
H4b4ad664c9534a26b65a2c91d2d4ebb57

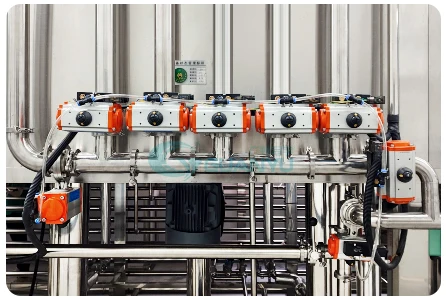

Pneumatic valve

All pipelines are equipped with pneumatic valves, and the opening time of pipeline valves can be controlled through the PLC control panel
H4a76a7844f904c7f96344765086f3271P

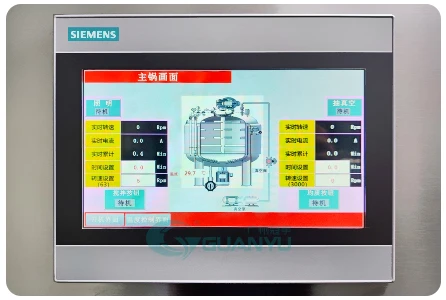

Console

The control box includes settings such as homogeneous shearing, frequency conversion speed regulation mixing, working timing, vacuum extraction, interlayer heating, etc.
H7e1a2cb7b741497aad799f34af475a2b3

Service

Use internationally renowned brand components to ensure the quality of the equipment and longer service life
Hd786e047e7584cc28558fe1f0148de12O
H9bc42bc0420b4d33bf59e4788607c302A
H61d116e8ce7041089b28fae05f3ec079v
H761f29d2321d45e1b5c2c082afd44d9eE
H83e55ae45b644d7995ee10b7080dedfeg
Hd771acaa9592422aa121dd13329916c9w
H3b34cdce229b486e9b1cae2a4dfeef62U
Hba0e69d1ec86431da26051e82d01851cf
FAQ

1..Who are we?

We , Guanyu is a professional machinery manufacturer on Vacuum emulsifying mixer, filling machine, RO water treatment, capping machine and labeling machine…etc for cosmetics , food and pharmaceuticals industries over 20 years.2.How can we guarantee quality?Quality control based on ISO 9001, GMP requirements. All processes under QA monitoring. And final inspection and testing beforeshipment;3.What can you buy from us?Vacuum Emulsifying Machine, Liquid Washing Mixer, RO Water Treatment, filling machine, capping machine, labeling machine and etc…etc for cosmetics , food and pharmaceuticals industries4.Why should you buy from us not from other suppliers?1) cost-effective and competitive prices supplied2) Better communication and service3) Development, design, manufacturing , installing and good after-service5. What services can we provide?Accepted Delivery Terms: EXW ,FOB, CFR, CIF,DDPAccepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/T, L/C, Western Union , PAYPAL,etcLanguage Spoken: English,Chinese
