External Circulation Homogenous Mixing Machine Blending Tank Stainless steel Cosmetic Lotion Ointment Scar Acne Freckle Cream

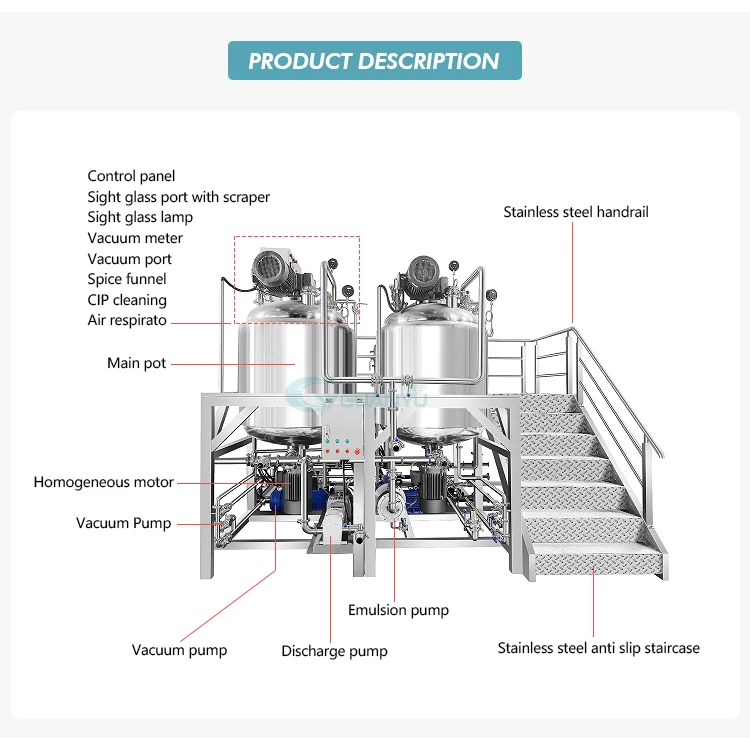

Products Description
Mixing paddle
Variable frequency speed regulation is 0-62r/min, so that different materials can be mixed evenly. The shape of the mixing paddle will be designed according to your materials

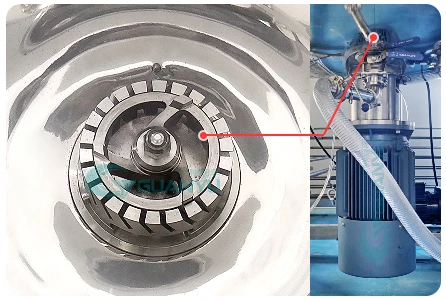

Homogenizer
Frequency conversion speed regulation 0-3200r/min, homogeneous shearing head high-speed shearing materials, so that the materials are completely broken and mixed!
Vacuum Pumps
Under the vacuum environment, the emulsification pot can discharge foam when the materials are mixed, thus improving the quality of the materials to be treated. Vacuum deaeration process can ensure the sterility of materials

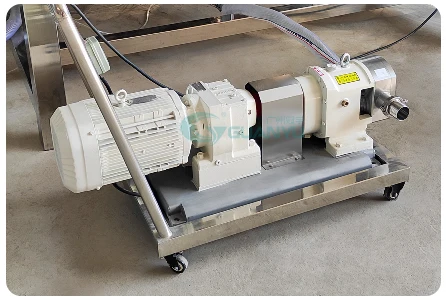

Rotor pump
The rotor pump is suitable for conveying paste or liquid, which can be transferred from the mixing pot to the storage tank, or from the storage tank to the mixing pot
Console
The control box includes settings such as homogeneous shearing, frequency conversion speed regulation mixing,
working timing, vacuum extraction, interlayer heating, etc.
working timing, vacuum extraction, interlayer heating, etc.
Service
Use internationally renowned brand components to ensure the quality of the equipment and longer service life
Specification | Working Volume(L) | Heating Method(optional) | Dimension(L*W*H)(m) | Weight(kg) |
GYE-50 | 50 | Electric heating or steam heating | 2.6*2.4*2 | 650 |
GYE-100 | 100 | 2.8*2.5*2.2 | 850 | |
GYE-200 | 200 | 3*2.8*2.3 | 1100 | |
GYE-500 | 500 | 3.3*3*2.5 | 1500 | |
GYE-1000 | 1000 | 4.2*3.5*3.8 | 2500 |
