automatic cream filling machine Bottle Liquid Soap Filling Machine Shampoo Detergent Bottle Cream Filling Capping Machine Filling Production Line

Category
automatic cream filling machine Bottle Liquid Soap Filling Machine Shampoo Detergent Bottle Cream Filling Capping Machine Filling Production Line
Products Description
Hb5b5025efc3e4dc68981e5e42bb68b163
He77369f1672c43a7acedef5ce50812e3E
H42b540a7d10a45b282a19d50d4cfa36bL
Max filling speed:
filling 200ml, 2000~3000 pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property
Applicable bottle diameter size:
30-300(mm)
Applicable bottle height size:
30-350(mm)
Filling dose:
100~ 1000ml (Customizable)
Filling accuracy:
±1%
Voltage:
220V / 380V (Customizable)
Working pressure:
0.6MPa
Capping speed:
2000-3000 bottles/hour
Lower cover way:
Manual or vibrating plate
H4cb8b902a1f24c04a3af46125dcb6a86s
Hb43eaae15c8949beb7324e2c7472e3b6S

Touch screen control

Touch screen control panel makes it more convenient to adjust parameter.It can fill liquid by entering certain filling range,and the visual working data helps you fill liquid more accurately.

H6136565072ba44248cdc65168d1f43498

Filling nozzle

The filling nozzle is with anti-dripping design,ensure the production cleanli-ness.Each nozzle can be controlled separately.We can also customize 2/6/8 filling nozzle of this machine.
Ha720945633034dae8657ffa7799c6674y

Light sensor

The electric eye is designed to detect bottles,prevent from missing or wasting bottles.It will not fill liquid if no bottle passes through,reduce production error.

H5c6eebcfa55d4074b51c22b1e81ff344o

Automatic feeding

The filling machine is equipped with a liquid level sensor. When the material in the hopper is lower than a certain position, it will be automatically fed through the feeding system (diaphragm pump/rotor pump/screw pump).
H4c905afc0d4b4ef4b4ab74cf7f6e94d69
Hc62acbf9cebb4cbaa4ebdc18e3f5144ee

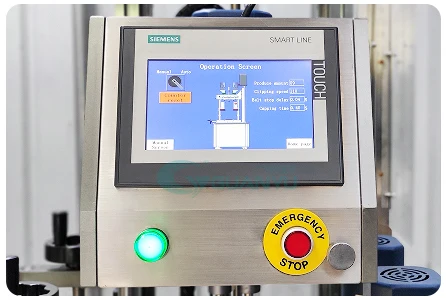

Touch screen control

Touch screen control panel, you can modify the capping time to change the tightness of the capping, with an emergency stop button to ensure production safety.
H556a128ce51d4f69a2035417fac4c580m

Capping head

Adopt plastic wheels, no harm to the surface of the cap when screwing the cap. Width can be freely adjusted, uitable for many different shapes/sizes of bottle caps

H3c7c6f64b92a4715b5b06a81771125d3M

Conveyor

This machine is equipped with automatic conveyor belt, which can be used with back-end equipment such as labeling machine to realize automatic production and effectively improve work efficiency.
Hc660b0d884894b5b948059c23992725bs

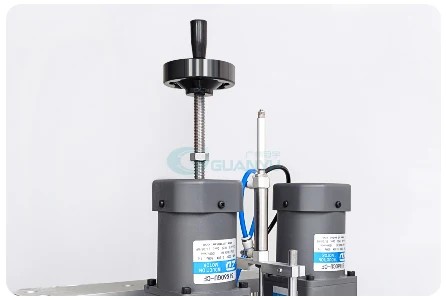

Height adjustment

By adjusting the height knob, the working height can be adjusted according to the height of the bottle. This ensures that the machine can be used for as many bottle caps as
possible.
Hc3d6f376202c4b70bca5d6908015c502l
H761f29d2321d45e1b5c2c082afd44d9eE
Hfe2426f237ea4fd286a297bada7ea666Z
H8c509d32d9694fa383d3933d26da8848H
H2e394a89107f4a60a86dbad71b91af69H
Power

1.0

Model Number

Gy10, Gy15, Gy20, Gy25, Gy30

Condition

New

Type

Filling Machine, Filling Mchine

Machinery Capacity

4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH

Applicable Industries

Manufacturing Plant, Food & Beverage Factory, daily chemical, cosmetic

Showroom Location

Viet Nam, Russia

Application

Food, Chemical, cosmetic

Packaging Type

Bottles

Packaging Material

Plastic, Metal, Glass, Wood

Automatic Grade

Automatic

Driven Type

Pneumatic

Voltage

220V/380V 50HZ

Place of Origin

Guangdong, China

Brand Name

Guanyu

Dimension(L*W*H)

2300x1500x1900mm

Weight

400 KG

Warranty

1 Year

Key Selling Points

Automatic

Filling Material

Water, Liquid, cream, paste

Filling Accuracy

≤±1%

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Warranty of core components

1 Year

Core Components

Motor, Pump, PLC

Function

Filling

Product name

Bottle Filling Capping

After-sales Service Provided

1 Year

Feature

Automachine

Keywords

Liquid Filling Capping Machine

Suitable bottle

Plastic Glass Round Square Bottle

Bottle Size

Bottle Based Customization

Advantage

Easy Operation High Efficiency

Processing Types

Automatic Bottle Filling Sealing Machine
