A liquid soap factory can lose hours every week to manual dosing, inconsistent viscosity, foam during transfer, and a filling machine waiting for the next batch. Liquid soap production line automation works when the mixing, holding, تعبئة, تكوين, وضع العلامات, and inspection stages are designed as one process rather than purchased as isolated machines. This guide shows how to choose the right automation level, where control actually improves product consistency, and which documents to request before placing an equipment order.
Contents
Where does liquid soap production line automation pay first?
The first automation target is usually not the most expensive machine. It is the handoff that creates the most variation: weighing, تحويل, خلط, or filling. When operators record each addition manually, a small dosing difference can change viscosity, fragrance distribution, or final fill weight.
Start with a batch map that records raw-material additions, خلط الوقت, درجة حرارة, transfer route, hold time, and filling speed. A supplier can then match the control points to your formula instead of quoting a generic line. Our engineers use this process when designing GY mixing tanks and supporting filling equipment for daily chemical products.
Automation brings the clearest return when the factory has repeated recipes, multiple shifts, frequent bottle changes, or a narrow tolerance for fill weight. A smaller producer may gain more from semi-automatic transfer and recipe records than from a fully automated line with controls that the team cannot maintain.
If you are still defining the process, ملكنا liquid soap manufacturing business guide helps connect production planning with equipment decisions. For the mixing stage, review the mixing machine range before fixing the line layout.
For a wider packaging view, compare the automatic filling and capping guide with your container and changeover requirements. It gives your team a practical reference before selecting connected packaging equipment.
When the same factory also handles pharmaceutical batches, our guide to sterile pharmaceutical mixing tanks explains how material, تنظيف, and validation questions change across industries.
Which equipment stages should connect in an automated liquid soap line?

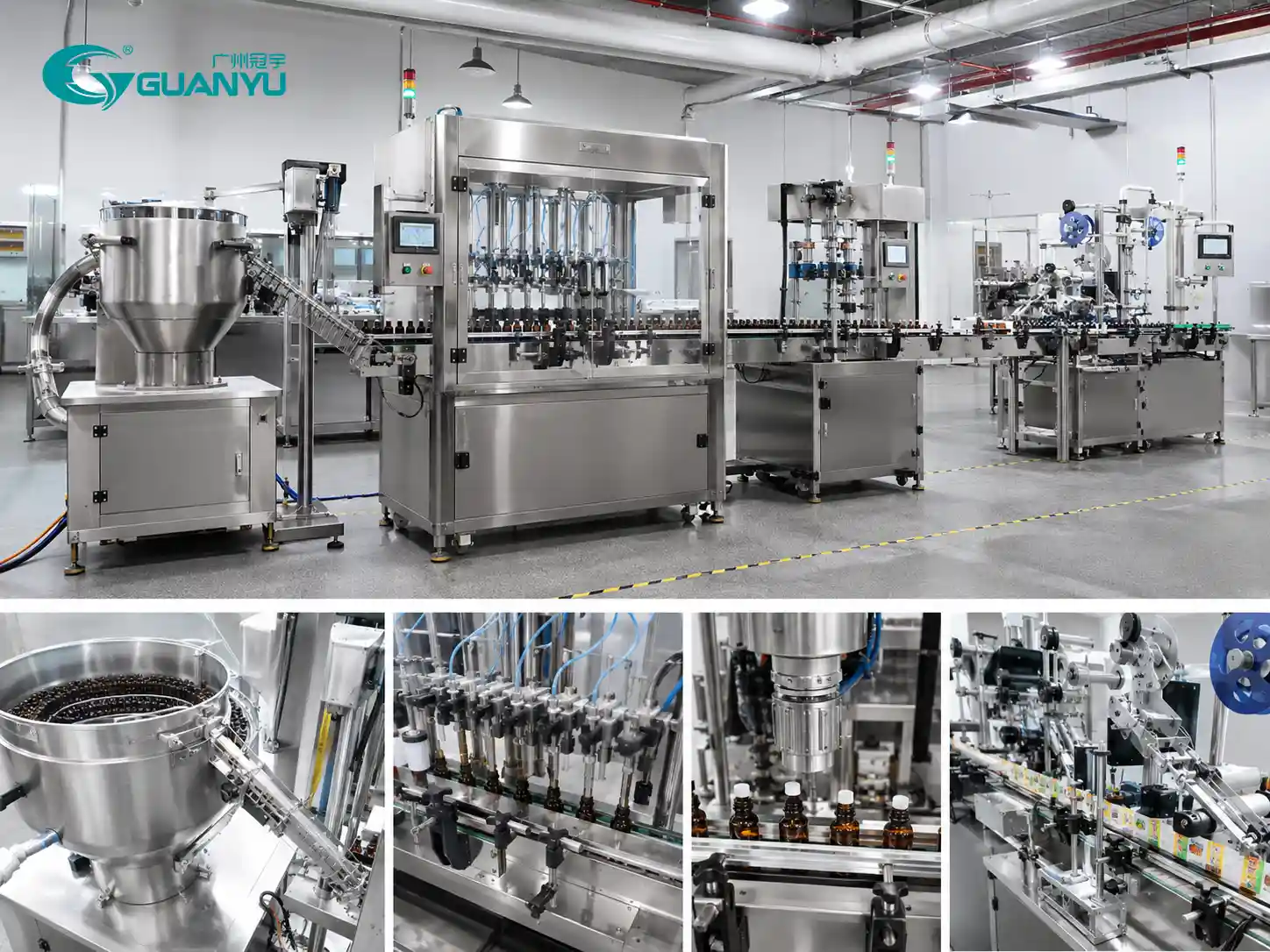

A practical line normally connects a raw-material preparation area, a SUS304 or SUS316L mixing tank, a transfer pump, a buffer or storage tank, a liquid filling machine, a capping machine, a labeling machine, and a coding or inspection point. The exact arrangement depends on product viscosity, container format, طريقة التنظيف, and planned output.
| Stage | Automation decision | What to verify before ordering |
|---|---|---|
| Material dosing | يدوي, assisted, or recipe-controlled | Ingredient sequence, weighing tolerance, and data records |
| خلط | Variable-speed agitator with heating if required | Viscosity range, shear sensitivity, temperature range, and tank working volume |
| Transfer | Pump and controlled piping | Foam tendency, sanitary connections, drainability, and pump compatibility |
| حشوة | Single, multi-head, or servo-controlled | Container range, target fill accuracy, سرعة, and changeover time |
| التغليف | Connected capping, وضع العلامات, and coding | نوع الغطاء, label dimensions, rejection logic, and line layout |
Do not judge a line by the headline speed alone. The usable output is limited by the slowest stage, changeover, تنظيف, and operator intervention. Ask the supplier for a cycle-time explanation that separates mixing time from packaging speed, because those numbers describe different production constraints.
How can automation control viscosity, رغوة, and transfer losses?
Liquid soap is not automatically easy to mix. Surfactants can trap air, fragrances can change flow behavior, and salt or thickener additions can shift viscosity sharply near the end of a batch. A line that moves product quickly but introduces air may create a filling bottleneck and unstable appearance.
Use a controlled addition sequence and match the agitator to the formula. A GY mixing tank can be specified in SUS304 or SUS316L, with heating by steam or electricity when the recipe requires temperature control. The engineering brief should state whether the product needs gentle circulation, higher shear dispersion, or a separate homogenizing step.
During commissioning, record the batch temperature, mixing duration, agitator setting, transfer condition, and fill result for each trial. These records are more useful than a supplier’s general claim about consistency because they give your production team a repeatable starting recipe and a clear troubleshooting path.
What automation level fits your factory?
Semi-automatic equipment can be the sensible choice when recipes change often, bottle formats are still being tested, or the team needs flexible production. It lowers the control burden and can leave room for future upgrades, provided the tank outlets, piping, and electrical architecture are planned for expansion.
A fully automatic line becomes more practical when the factory runs stable recipes, several shifts, and repeat container formats. PLC control can coordinate pumps, valves, تعبئة, تكوين, and alarms, while recipe permissions reduce accidental changes between batches.
Compare the options using four operational measures: batch repeatability, labor at each handoff, changeover time, and the cost of cleaning and maintenance. We provide factory layout design, machine selection, التكليف, and process guidance so the automation level follows the production plan rather than the other way around.
How should you specify QC, تنظيف, والصيانة?
Request a functional description for every control loop. It should explain what happens when a tank reaches its temperature range, a pump loses prime, a filling head detects an empty container, or an operator opens an access point. Clear alarm behavior is a production safeguard, not a software extra.
Design cleaning around the actual product family. Ask where liquid drains, which parts can be removed without special tools, how seals are accessed, and whether the pipe route leaves dead legs. A line that is quick to clean may protect more output than a faster filler that creates long changeovers.
Guanyu has supplied machinery to more than 100 countries and combines mixing, تعبئة, تكوين, وضع العلامات, and storage equipment into one production proposal. Our manufacturing knowledge includes a five-axis linkage machining center introduced in 2021, while our service scope includes design qualification, installation qualification, operational qualification, and performance qualification support.
لتخطيط نظام الجودة, compare the supplier’s records with the framework described by ISO 9001 quality management systems. This does not replace your own regulatory assessment, but it helps you ask how design changes, عمليات التفتيش, nonconformities, and service records are controlled.
قائمة مراجعة تدقيق الموردين: 5 المستندات التي يجب طلبها قبل التوقيع على أمر الشراء
- Process flow and layout drawing: verify that material flow, operator access, cleaning route, and future expansion fit the factory.
- Equipment specification sheet: confirm tank working volume, الصف المادي, agitator type, طريقة التدفئة, control platform, and utility requirements.
- Factory acceptance test plan: check how mixing, تحويل, إنذار, تعبئة, تكوين, and labeling will be demonstrated before shipment.
- Electrical and control documentation: request the I/O list, wiring drawings, password policy, recipe backup method, and spare-parts list.
- نطاق التثبيت والخدمة: confirm commissioning responsibilities, تمرين, شروط الضمان, remote support, and the process for ordering replacement parts.
Liquid Soap Production Line Automation FAQ
Can a small liquid soap factory start with semi-automatic equipment?
نعم. Semi-automatic mixing, تحويل, and filling can suit variable recipes or early-stage production. We recommend leaving connection points and control capacity for later expansion, and buyers should compare changeover labor rather than judging the purchase only by initial price.
Which stainless steel grade is suitable for liquid soap equipment?
SUS304 is used for many daily chemical applications, while SUS316L can be selected when the formula or cleaning environment calls for higher corrosion resistance. The correct choice depends on the ingredients and process conditions, so ask for a material specification and verify it against your formulation.
How do I reduce foam before liquid soap reaches the filler?
Control the addition sequence, agitation intensity, transfer speed, and suction points before the filler. Our engineers review the product behavior and piping route together, while buyers should request a trial plan that records foam behavior during both mixing and transfer.
Can one supplier provide the complete liquid soap line?
نعم, a one-stop supplier can coordinate mixing tanks with filling, تكوين, وضع العلامات, and storage equipment. Guanyu provides these equipment categories and supports layout, تثبيت, التكليف, and process guidance; still, you should request one integrated interface list and one acceptance plan for the complete line.
Share your formula, target batch size, bottle range, daily output, and factory utilities with our engineering team. We can use those inputs to outline a suitable liquid soap production line automation concept and identify where semi-automatic or PLC-controlled equipment creates the clearest operational benefit.
