GY High effective 3d Powder Mixer 3d Powder mixing Blender 3D Vitamin Powder stirred
คำอธิบายผลิตภัณฑ์
แบบอย่าง | GY-100 | GY-200 | GY-400 | GY-600 | GY-800 | GY-1000 |
Barrel volume(ล) | 100 | 200 | 400 | 600 | 800 | 1000 |
max.loading volume(ล) | 75 | 160 | 320 | 480 | 640 | 800 |
max.loading weight(กก) | 50 | 100 | 200 | 300 | 400 | 600 |
Splidle speed(รอบต่อนาที) | 0-15 | |||||
Motor power(กิโลวัตต์) | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 |
Overall dimention (มม) | 1500*1200*1500 | 1750*1400*1800 | 2200*1550*1880 | 2250*1850*2100 | 2500*2000*2200 | 2700*2200*2250 |
น้ำหนัก (kg) | 500 | 800 | 1200 | 1500 | 2000 | 2500 |

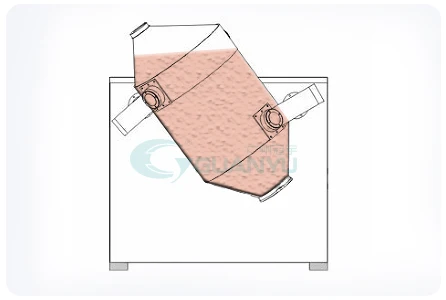

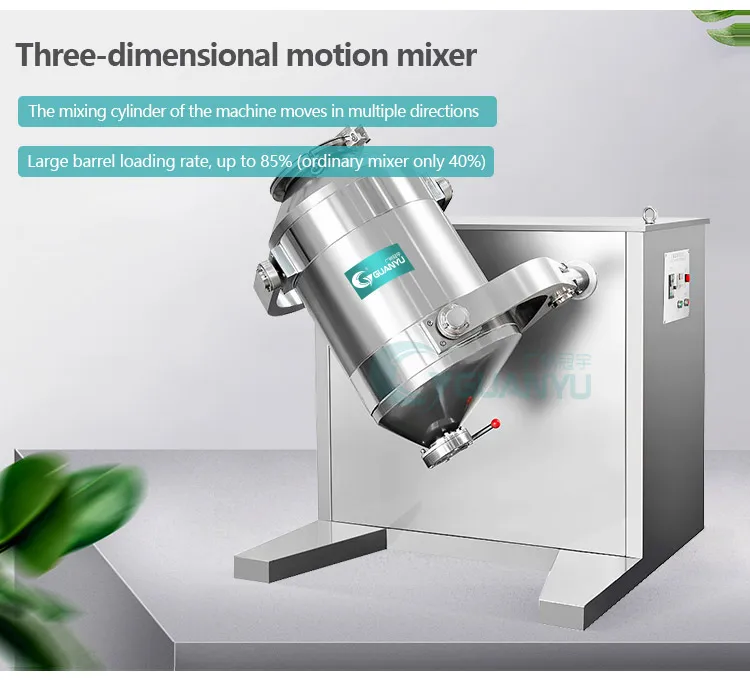

3D Motion Mechanism
The design of mixing adopts multi-direction
rotation, the movement is more flexible, the debugging, the maintenance is more convenient.
rotation, the movement is more flexible, the debugging, the maintenance is more convenient.
High capacity
Large barrel loading rate, up to 85% (ordinary mixer only 40%), high efficiency, short mixing time.
Mixing tank
Each part of the drum adopts arc transition, with high polishing precision, which meets the requirements of GMP.
Outlet
The sanitary butterfly valve discharge port is adopted, and when the discharge port is in a low position, the material is discharged at the same time.
Control panel
One key to start the mixing, can set the time to stop automatically,The mixing speed can be adjusted freely
