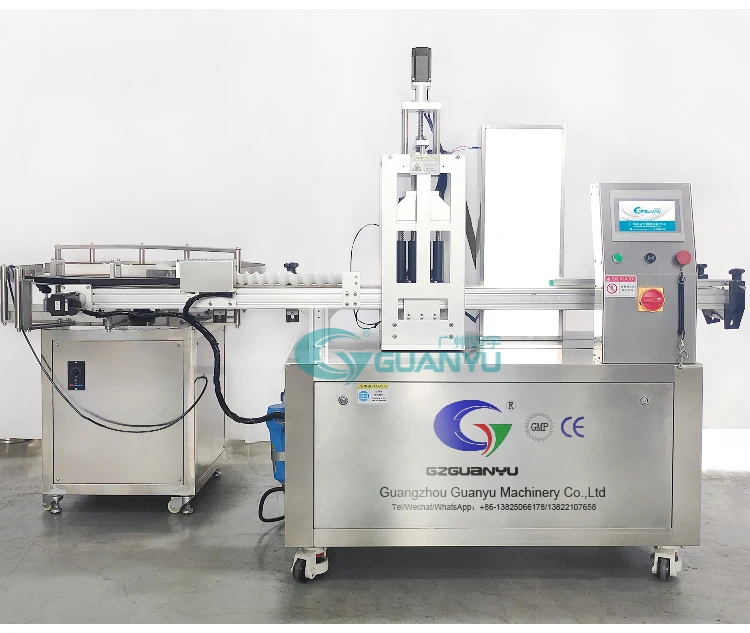

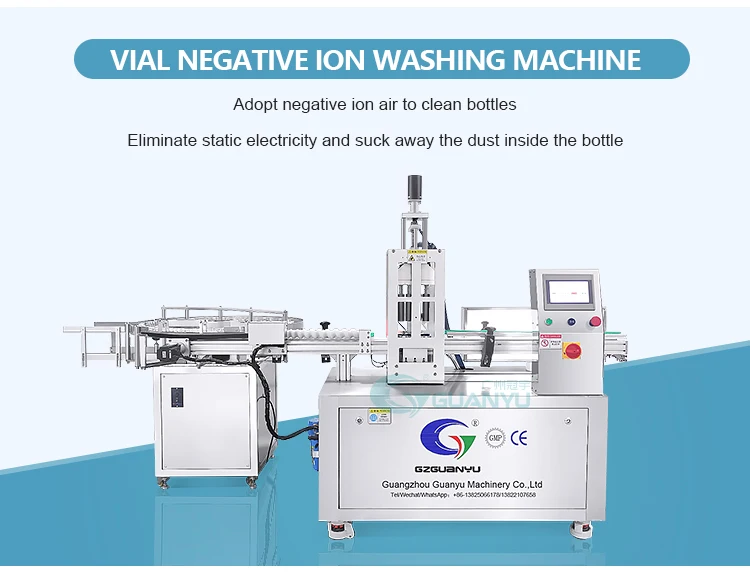

Guanyu Automatic Negative Ion Vial Cleaning Machine 5-10ml Glass Bottle Cleaning Washing Machine
Descrição dos produtos
Descrição dos produtos
Nome: | Vial negative ion washing machine |
Blowing and suction speed: | 60-80 garrafas (according to bottle diameter) |
Control: | PLC touch screen |
Drive: | Servo motor |
Switchboard power: | 2.5KW |
Air pressure: | 0.6-0.8MP |
Size: | 2750 * 1333 * 1540 mm（L*W*H） |

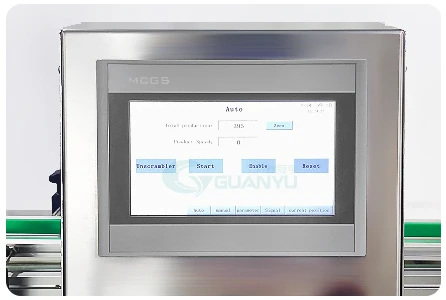

PLC control panel
The touch screen control panel can more conveniently adjust the parameters, automatically calculate the output,
and freely control the production speed
and freely control the production speed

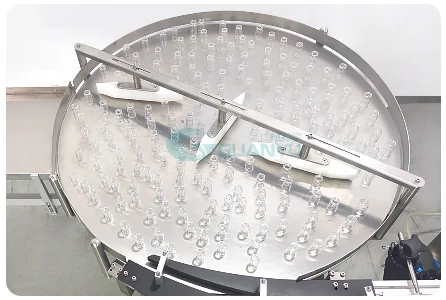

Bottle sorting machine
Fully automatic bottle sorting machine, which can automatically arrange glass bottles and automatically transport them to the next step for dedusting and cleaning
Electronic photoeye
The electric eye is designed to detect bottles to prevent missing or wasting bottles. If no bottles pass, it will not
start dust removal to reduce production error.

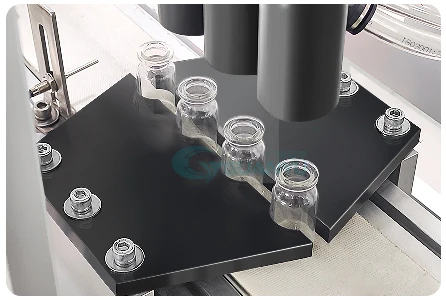

Dedusting head
When starting, the dust removal head presses the bottle to form a sealed environment, blowing first to prevent the
garbage from sticking to the bottle, and finally suction to eliminate the garbage and static electricity
garbage from sticking to the bottle, and finally suction to eliminate the garbage and static electricity

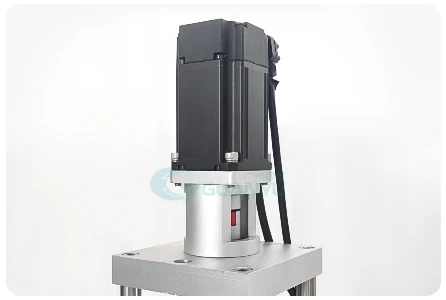

Servo motor
The servo motor is used for precise control. The precision is 100 times of that of ordinary motor. It has stable operation,
good torque frequency characteristics and certain overload capacity
good torque frequency characteristics and certain overload capacity

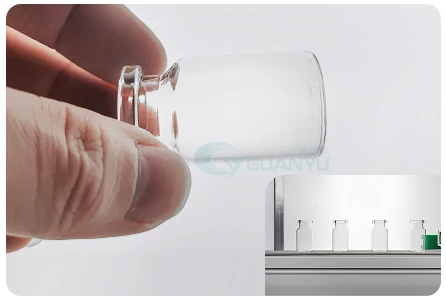

Light inspection
White soft light is used, with soft light source and uniform light distribution. The white bottom can easily check whether there is garbage in the bottle
