Labeling machine Self-adhesive sticker plastic bottle automatic round bottle and flat bottle double-sided labeling machine

Labeling machine Self-adhesive sticker plastic bottle automatic round bottle and flat bottle double-sided labeling machine
Product Description

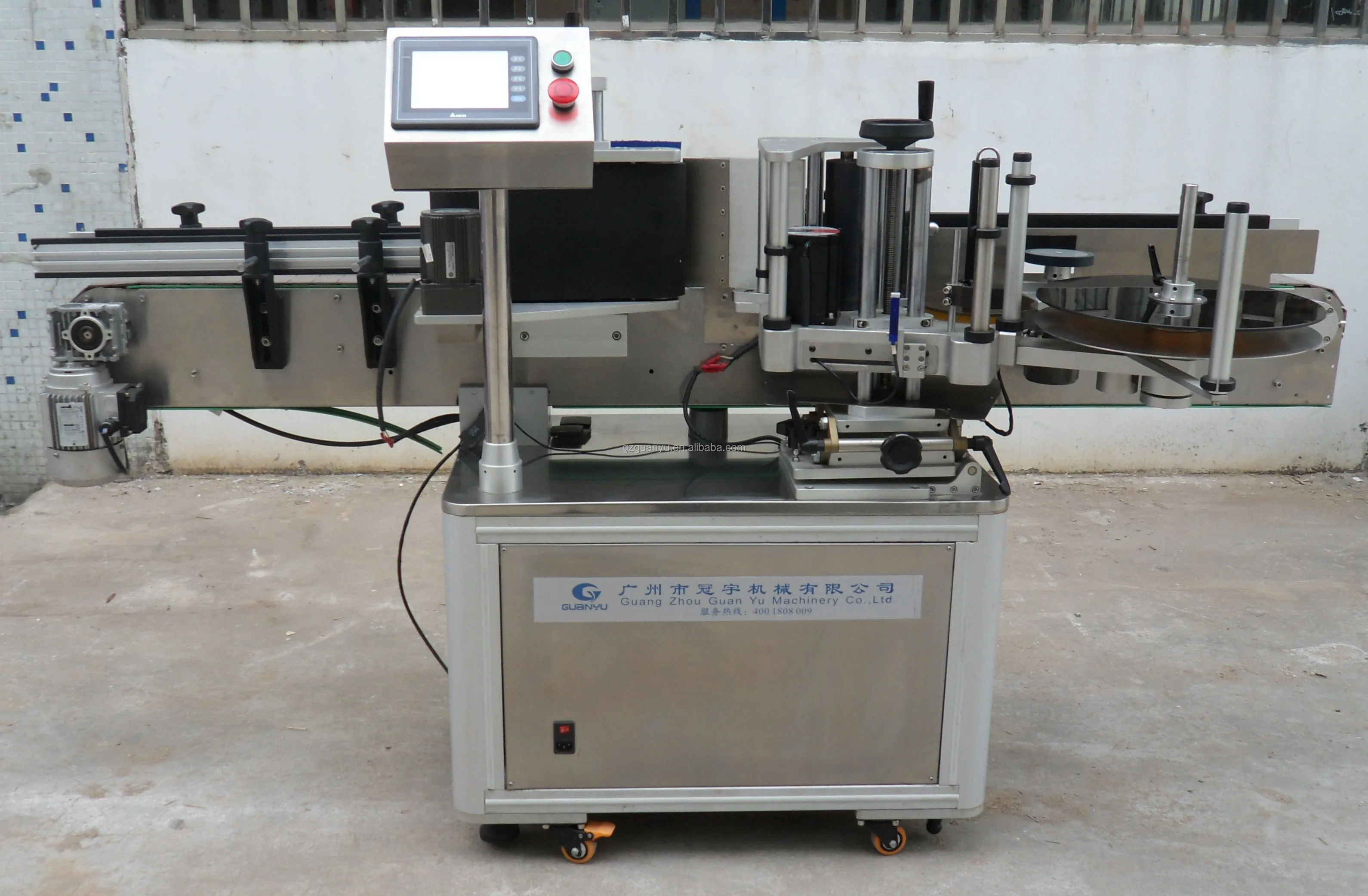

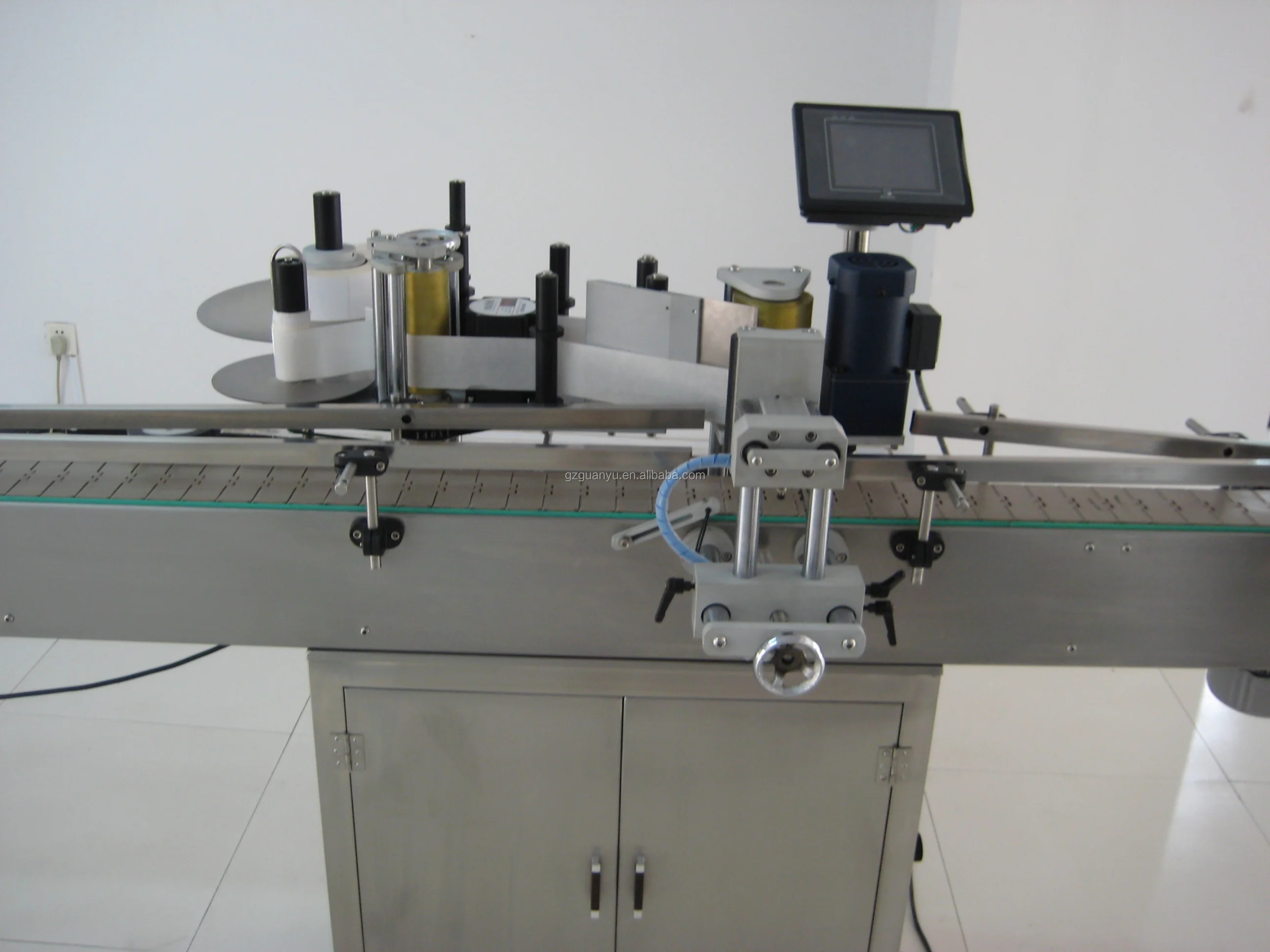

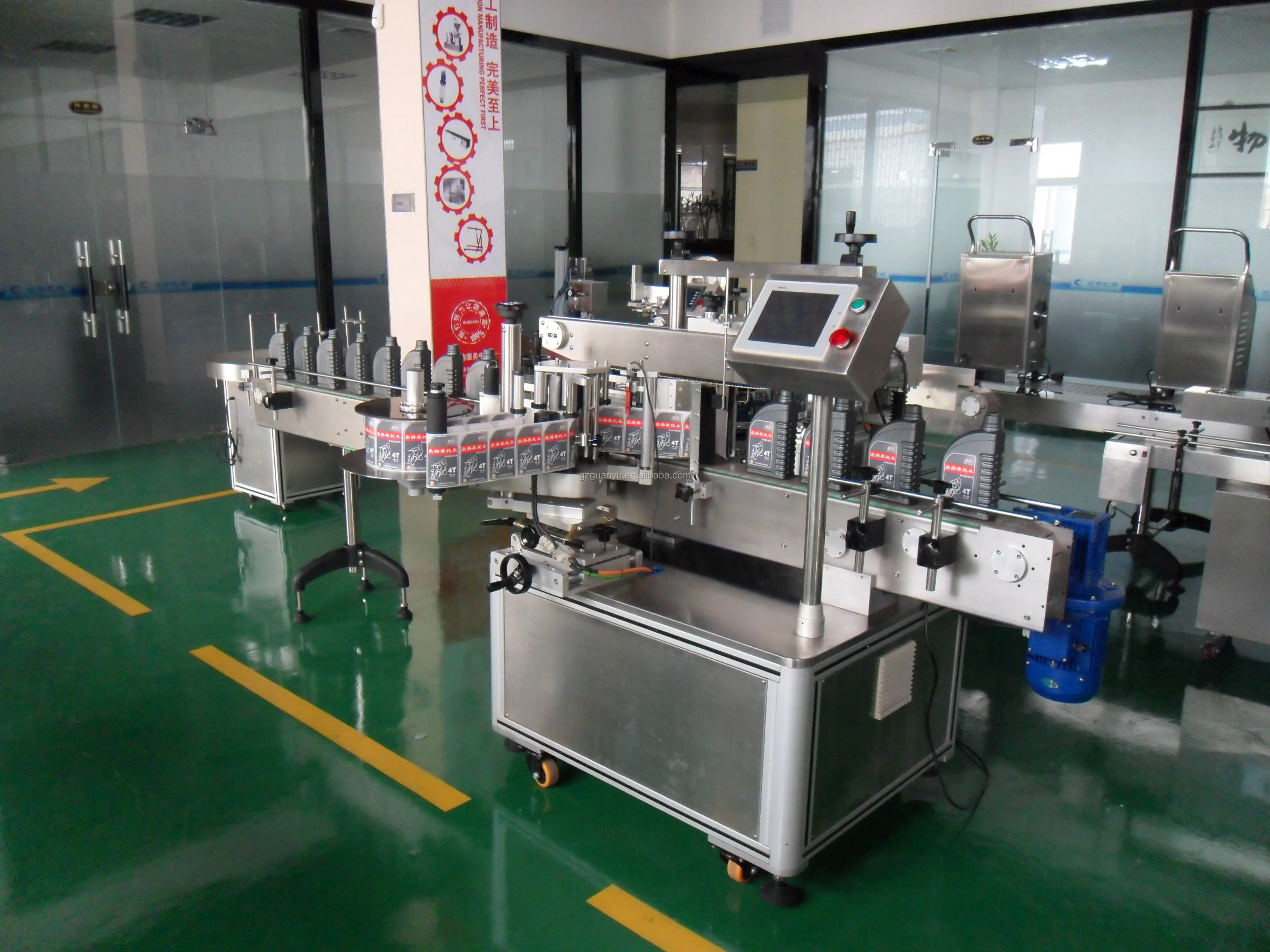

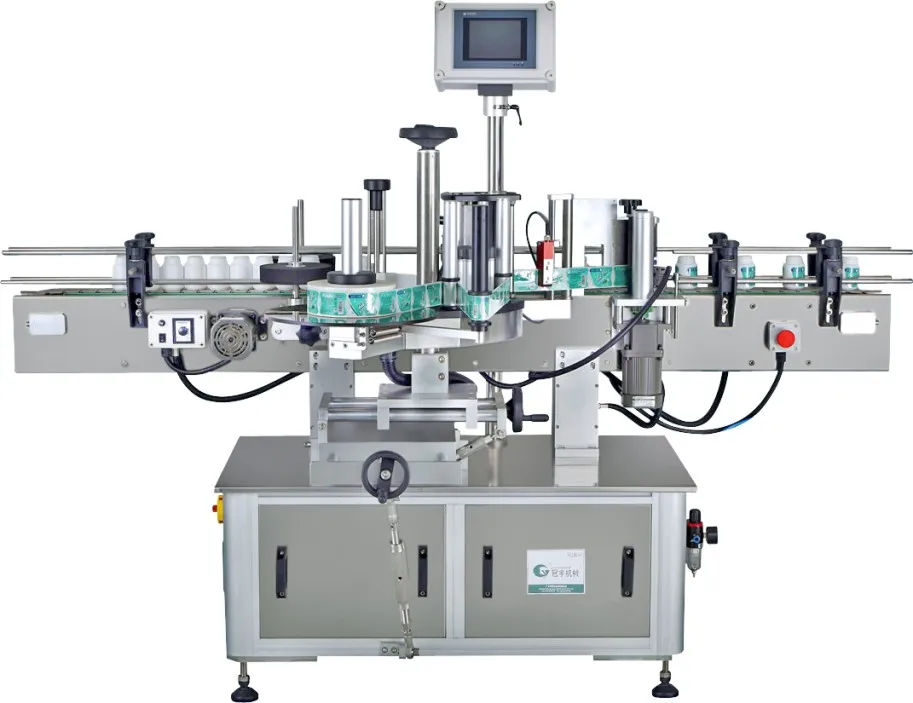

Labeling machine
Labeling machine
Hf85f0b43521e4a3fbb79e84b47f3c3e0S
Hb11921c46f174e269bda277f04e1dd68u
He5768aa0f2b64442afcbc750fb5e23b7q
1. All labeling machines are made of SUS304 stainless steel 2. Labeling machine can be equipped bottle feeding table 3. Labeling machine avoid many problems of labor labeling, skew labeling, bubble, wrinkle, irregular labeling etc 4. Labeling machine equips electric-eye to improve the precision for cutting off the label materials. 5. Labeling machine adopts equivalent PLC, positioning module, stepping motor and sensor electrical control system control.
Specification
Name
Economy Round Bottle Labeling Machine
Labeling Speed
20-200pcs/min(Depending on label length and bottle thickness)
Height of Object
30-280mm
Thickness of Object
30-120mm
Height of Label
15-140mm
Length of Label
25-300mm
Label Roller Inside Diameter
76mm
Label Roller Outside Diameter
380mm
Accuracy of Labeling
±1mm
Power Supply
220V 50/60HZ 1.5KW
Gas Consumption of Printer
5Kg/cm^2
Size of Labeling Machine
2200(L)×1100(W)×1300(H)mm
Weight of Labeling Machine
150Kg
Application
Hc13be9d76a5a4ec181ea43d1e4f63f4ew
1. For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
2. Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label. 3. Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
4. Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
Production Line
Customized production line services, please click to chat!!!
Packing & Delivery
Hb68801c379dc4a43bfce4750889f41f1p
Package:Normally, we will use plywood case for packing the machine, but if you have special request, we can do it as your request!Delivery time:50 days after confirming order, detail delivery date should be decided according to production season and orderdetails.
