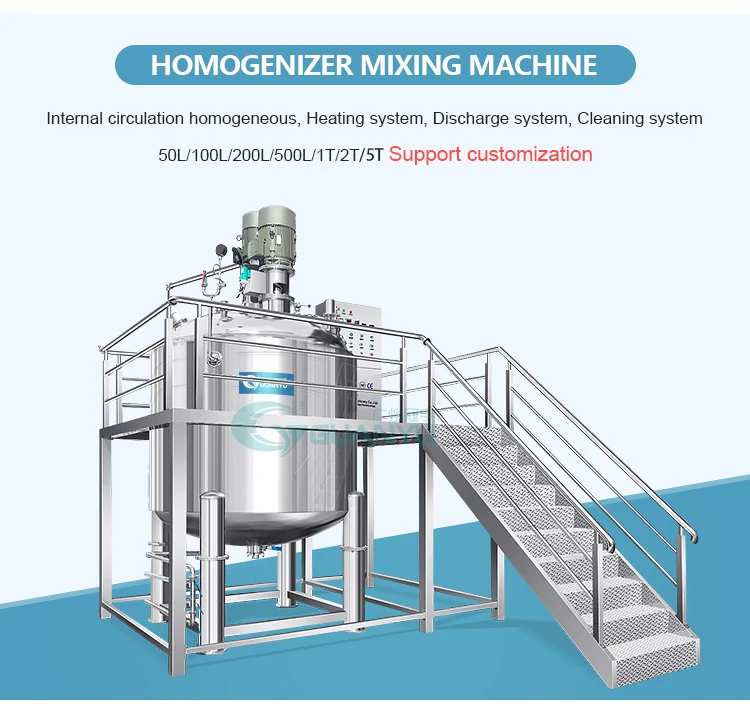

Chemicals Processing Hand Wash Liquid Soap Making Machine Homogenizing Shampoo Cosmetics Detergent Wash Mixer Machines

Products Description

PERFORMANCES AND FEATURES◭The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that highquality products of different processes according to customer requirements.◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpionand shorten production period.◭The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , whichfully conforms to GMP requirements.◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electricheating. Easy to discharge , bottom direct discharge or by transfer pump.

Mixing paddle

Variable frequency speed regulation is 0-62r/min, so that different materials can be mixed evenly. The shape of the mixing paddle will be designed according to your materials

Dispersed

The upper and lower serrations of the dispersion disc can shear, impact, smash and disperse materials such as paint, dry powder and solid-liquid at high speed, so as to achieve rapid mixing, dissolution, dispersion and refinement

Sealing design

Sealed aseptic design, equipped with feed filter, drain valve, mirror light, mirror mouth, essence hopper, CIP cleaning, air
respirator, using Siemens, ABB and other motors

Heating

Electric heating or steam heating can be selected, and the material is heated through the interlayer to achieve the ideal
stirring and emulsification state.

Console

The control box includes settings such as homogeneous shearing, frequency conversion speed regulation mixing,
working timing, vacuum extraction, interlayer heating, etc.
(PLC control is optional)
