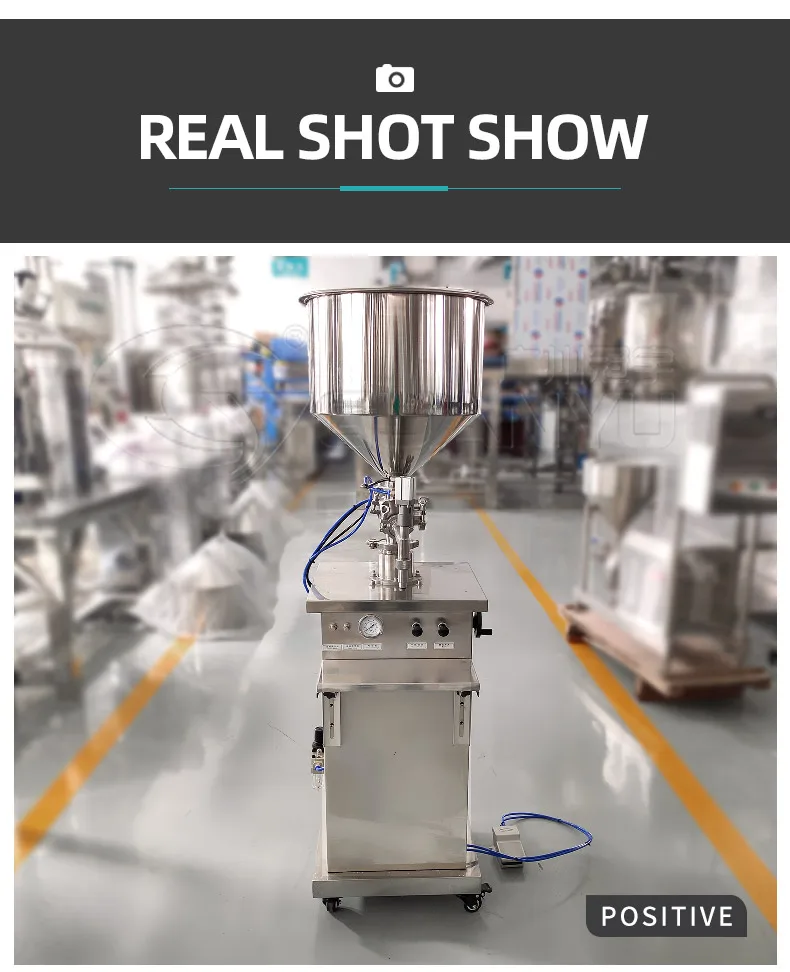

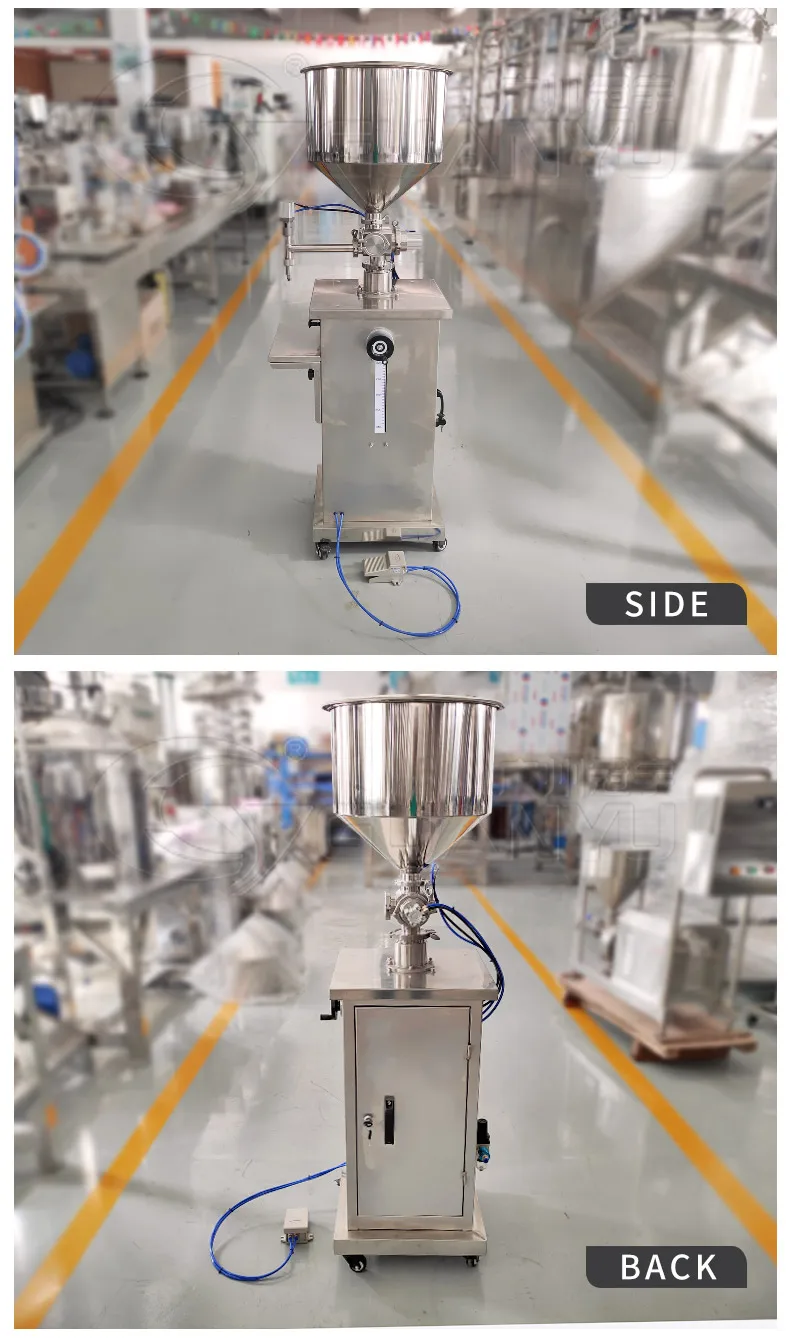

Guanyu Semi Automatic Mixing Heating High Viscous Material Gel Cream Filling Machine For Paste cream liquid Soap

Category

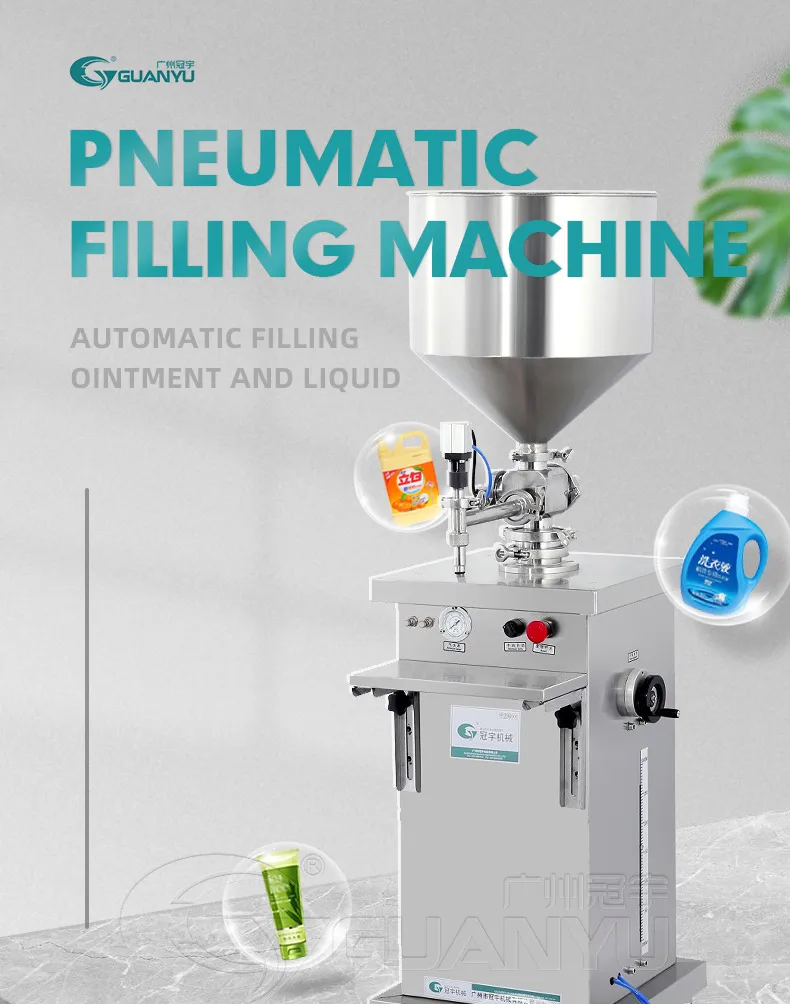

Guanyu Semi Automatic Mixing Heating High Viscous Material Gel Cream Filling Machine For Paste cream liquid Soap

FEATURES AND ADVANTAGES

1. The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.
2. The aluminum prominent imported parts and outstanding mechanical design ensure its leading position among other similar machines in China.
3. The machine is light and convenient with brand new horizontal design and automatic material drawing, removing the trouble of frequent feeding of the vertical material hopper.

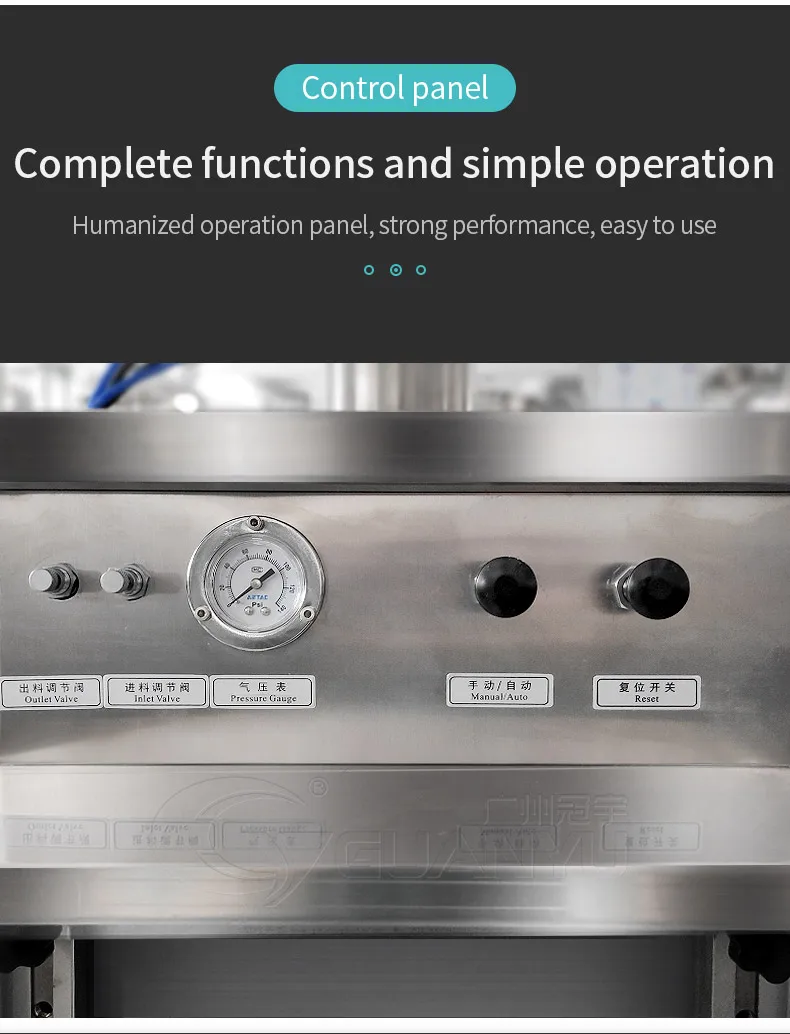

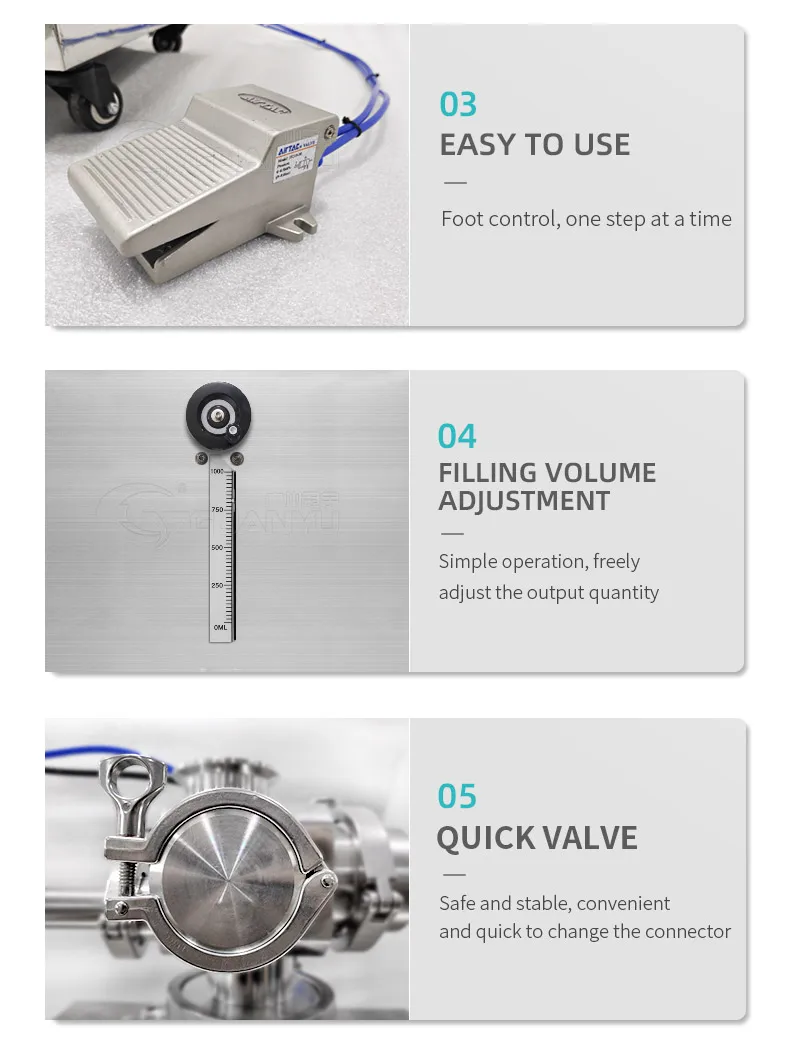

4. Manual and automatic mutual switching function. When the machine is under the “automatic” status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the “manual” status, the operator steps on the pedal to realize the filling. If the pedal is always stepped on without releasing, the machine will change into the automatic continuous filling status.

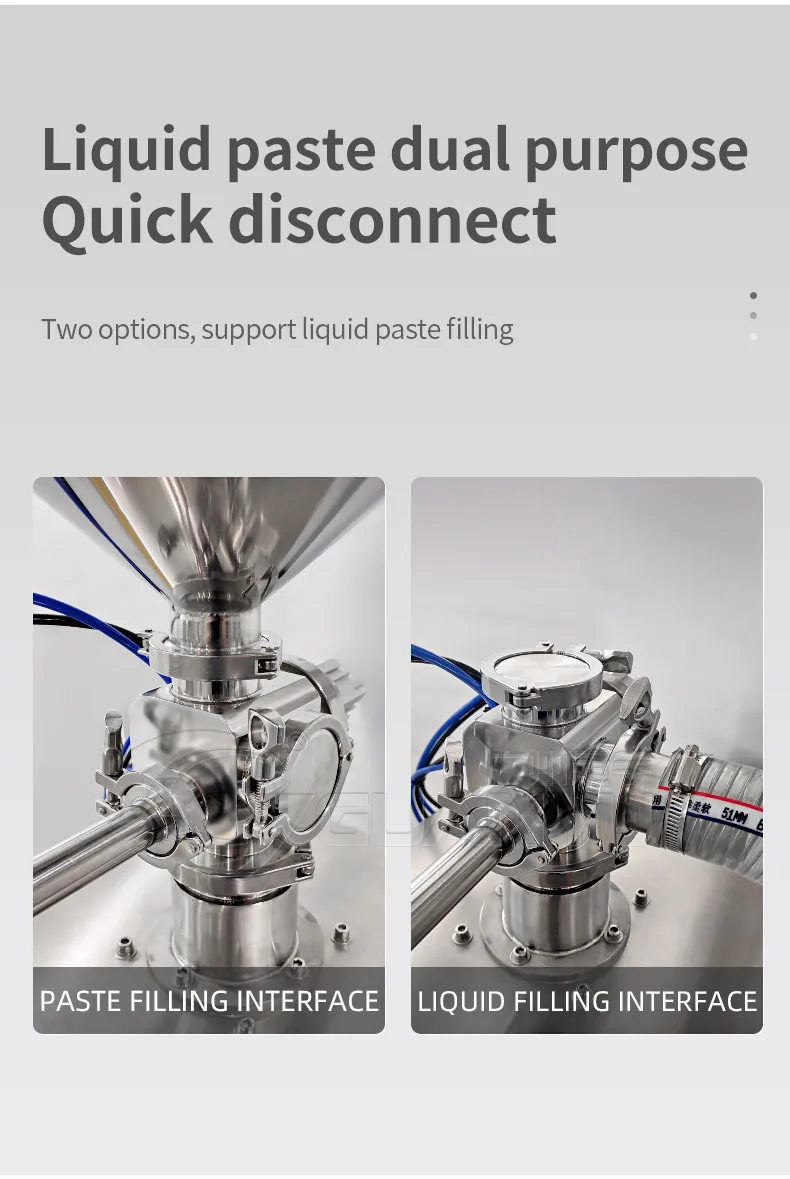

5. The material cylinder and tee parts adopt handcuffs type connection, which can be conveniently disassembled and assembled without the need of using any special tools. Therefore, the cleaning is very convenient.

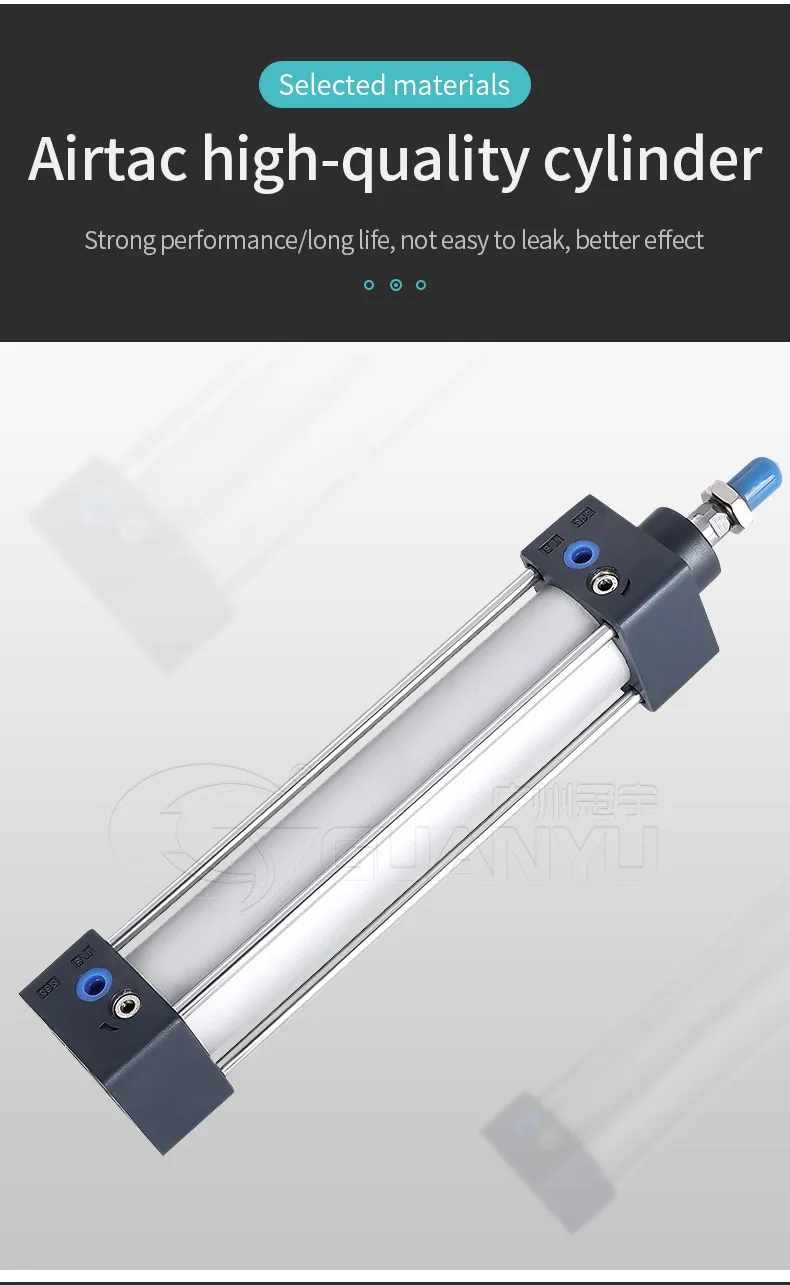

6. Leakage proof filling system. During the filling, the cylinder makes upward and downward movements to drive the closure head. When the cylinder moves downwards, the closure head will move downwards, the valve will be opened and the system starts to fill the materials. When the cylinder moves the upwards, the closure head will move upwards, the valve will be closed and the filling will be stopped, so that leakage and wire drawing are prevented.
Model
Filling Volume
Air Consumption
Net Weight
Dimensions(cm)
GY-15
5-70ml
23L/min
11kg
L92*W28*H40
GY-25
20-250ml
30L/min
25kg
L102*W30*H40
GY-50
50-500ml
44L/min
28kg
L108*W32*H41
GY-100
100-1000ml
87L/min
36kg
L128*W36*H41
GY-250
250-2500ml
160L/min
60kg
L130*W60*H51
GY-500
500-5000ml
300L/min
75kg
L130*W60*H51
