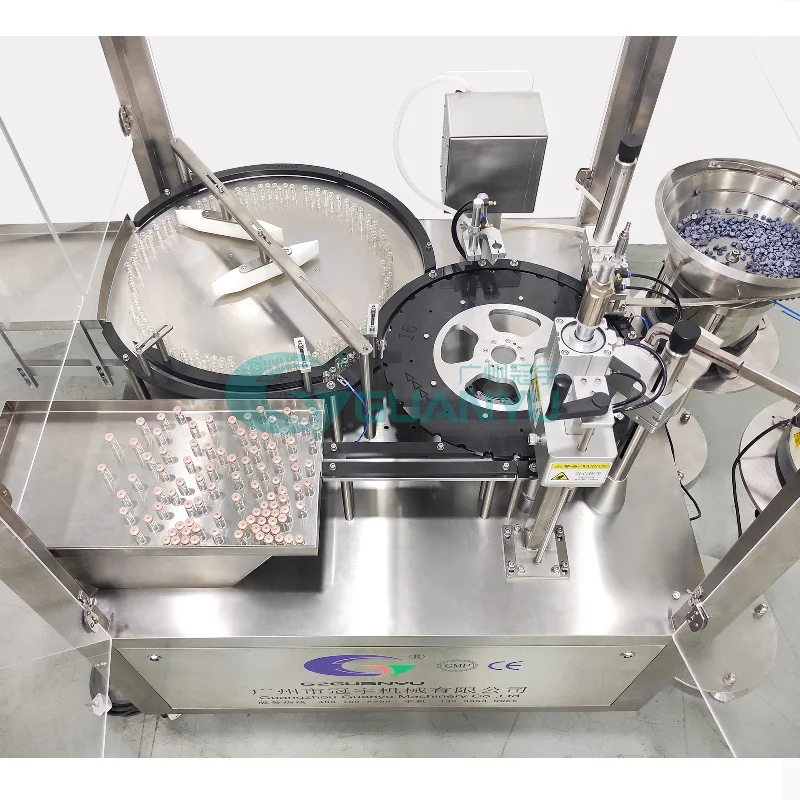

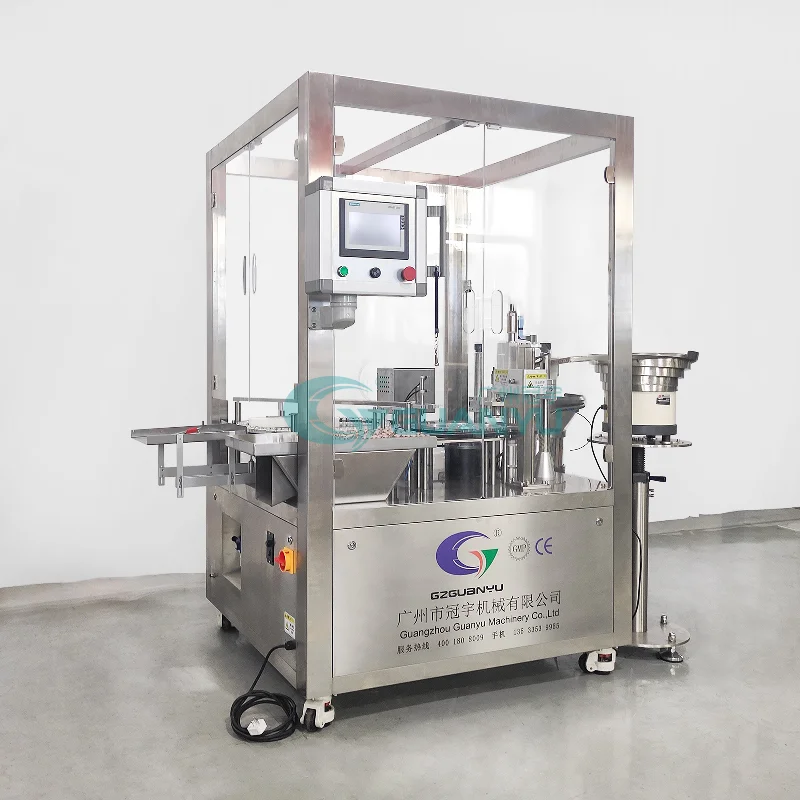

Guanyu High Speed 1ml 5ml Vial cream tube filling machine 1 Nozzles 2 Nozzles 10ml Vial Crimping Machine

Category
Guanyu High Speed 1ml 5ml Vial cream tube filling machine 1 Nozzles 2 Nozzles 10ml Vial Crimping Machine
Voltage
220V 50HZ
Production speed
40-70 bottles/min（related to the number of nozzles）
Filling volume
1-10ml (can be customized)
Filling nozzle
2/4/6/8
Filling accuracy
+/- 1%
Size
Length: 1918 Width: 1167 Height: 1900

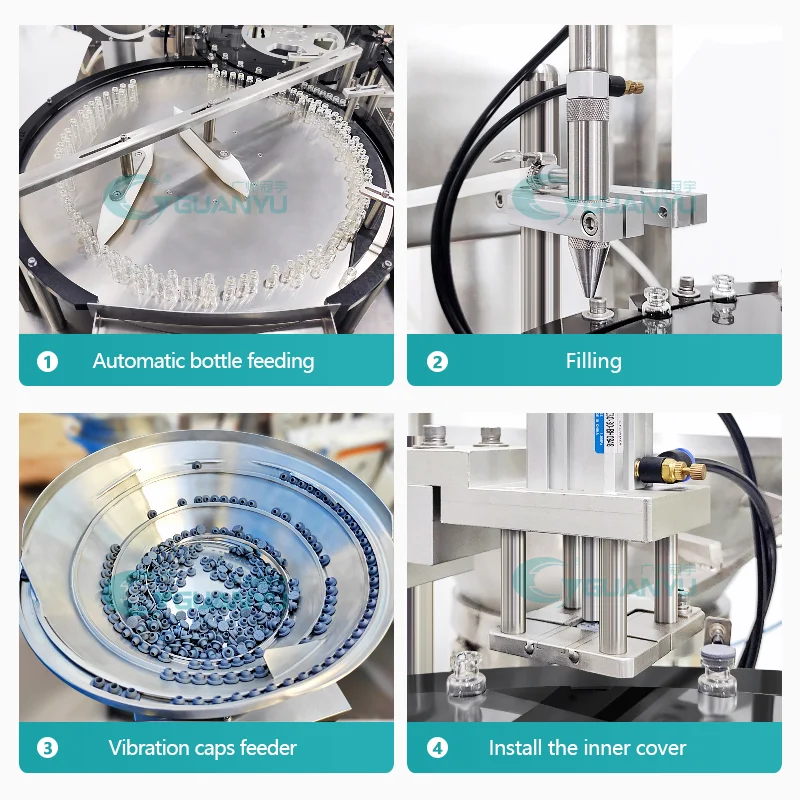

Automatic bottle feeding

After the bottle is placed, the carousel automatically sorts the bottle and transports the bottle to the next step.

Filling

Precision servo anti-drip filling head, using 316 material, filling 1-10ml can be customized, the number of filling heads
can be customized 1/2/4/6/8 heads.

Vibration caps feeder

After placing the inner cap, the vibrating plate automatically puts the inner cap on the bottle.

Install the inner cover

Adjustable sealing height, suitable for bottles of various heights, automatic alarm when there is no inner plug

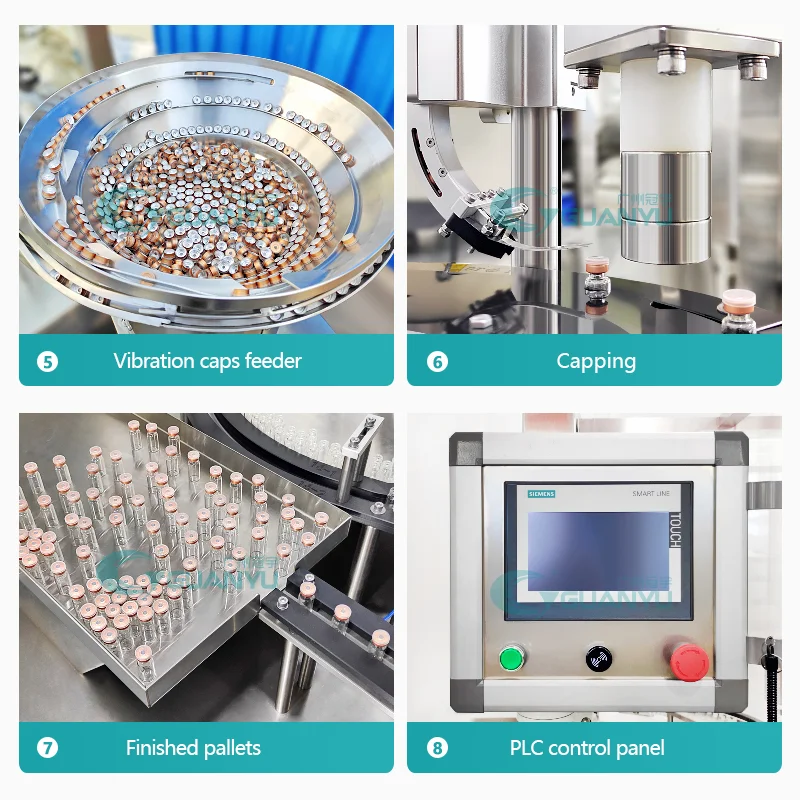

Vibration caps feeder

After the cap is put in, the vibrating plate automatically puts the cap on the bottle

Capping

The new capping head design is universal for different lid materials. Compared with the high-speed cutter type, it is not easy to drop debris and is not easy to pick the ackaging
material.

PLC control panel

User can adjust speed and filling volume by touch screen setting. Easy to use, adjust, maintain.

Finished pallets

The bottle is put in and out of the bottle in the same direction, which is convenient for personnel to operate.
Power

8KW

Model Number

GYF-1, GYF-2

Condition

New

Type

Filling Machine, Filling Machine

Machinery Capacity

4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, 1000BPH

Applicable Industries

Hotels, Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location

Italy, India, Mexico, Argentina, Bangladesh, Uzbekistan

Application

Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes

Packaging Type

Cartons, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, case

Packaging Material

Plastic, Paper, Metal, Wood

Automatic Grade

Automatic

Driven Type

Electric, Electric

Voltage

380V (Vary by regional)

Place of Origin

Guangdong, China

Brand Name

GUANYU, Guanyu

Dimension(L*W*H)

4360*3300*2700(Vary by model)

Weight

26 KG

Warranty

1 Year

Key Selling Points

High Productivity

Filling Material

Oil, Juice, Powder

Filling Accuracy

<1%

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Warranty of core components

1 Year

Core Components

Motor, Pressure vessel, Bearing, Motor, PLC, Gear, Bearing, Gearbox, Engine

Height of bottle

52 mm

Filling volume

1 ml 2 ml 3 ml 5 ml 10 ml

Bottle type

Glass bottle, PET bottle

Diameter of bottle

10 mm

Filling speed

2000 bph
