2000L Hair Wax Vacuum Emulsifier Hair Cream Making Machine Gel Mixing Tank Homogenizing Mixer Machine
Products Description
◭Vacuum emulsifying mixer tank machine is consist of vacuum emulsifying main tank, oil pot ,water pot, hydraulic lifting system (with or without),heating &cooling system,vacuuming system,PLc automatic control or manual button control system,etc.
◭The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm,the shear degree is about 0.2~5um.
◭The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.
◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
◭The emulsifying main tank ,it is vacuum design ,the maximum vacuum degree is -0.09Mpa.
◭We can choose hydraulic lifting ,it is easy for cleaning. or if factory has limited space,we can advise to fixed type, the top cover can not lifted,but there is pressure manhole,we can open it to check the tank inside .
◭Oil pot and water pot as pre-heating and pre-mixing,it is necessary for batch production,it efficiently save the preparation time.
◭We can choose PLC automatic control system ,or manual button control box,it depens upon your demand.
Model | Working Volume(L) | Blending power(kw) | Blending rotation speed(r/min) | Homogenizing power(kw) | Homogenizing rotation speed(r/min) | Heating method |
GYE-5 | 5 | 0.37 | 0~63 | 0.75 | 0~3500 | Electric |
GYE-50 | 50 | 1.1 | 0~63 | 2.2 | 0~3500 | Electric |
GYE-100 | 100 | 2.2 | 0~63 | 3~4 | 0~3500 | Electric |
GYE-200 | 200 | 2.2 | 0~63 | 4~5.5 | 0~3500 | Steam heating Or Electric heating |
GYE-500 | 500 | 3.0 | 0~63 | 7.5 | 0~3500 | |
GYE-1000 | 1000 | 4.0 | 0~63 | 11 | 0~3500 | |
GYE-1500 | 1500 | 5.5 | 0~63 | 11-15 | 0~3500 | |
GYE-2000 | 2000 | 7.5 | 0~63 | 15-18.5 | 0~3500 | |
GYE-3000 | 3000 | 7.5-11 | 0~63 | 18.5-22 | 0~3500 | |
GYE-5000 | 5000 | 11-15 | 0~63 | 18.5-22 | 0~3500 |
Product Show
Company Profile
Certificates

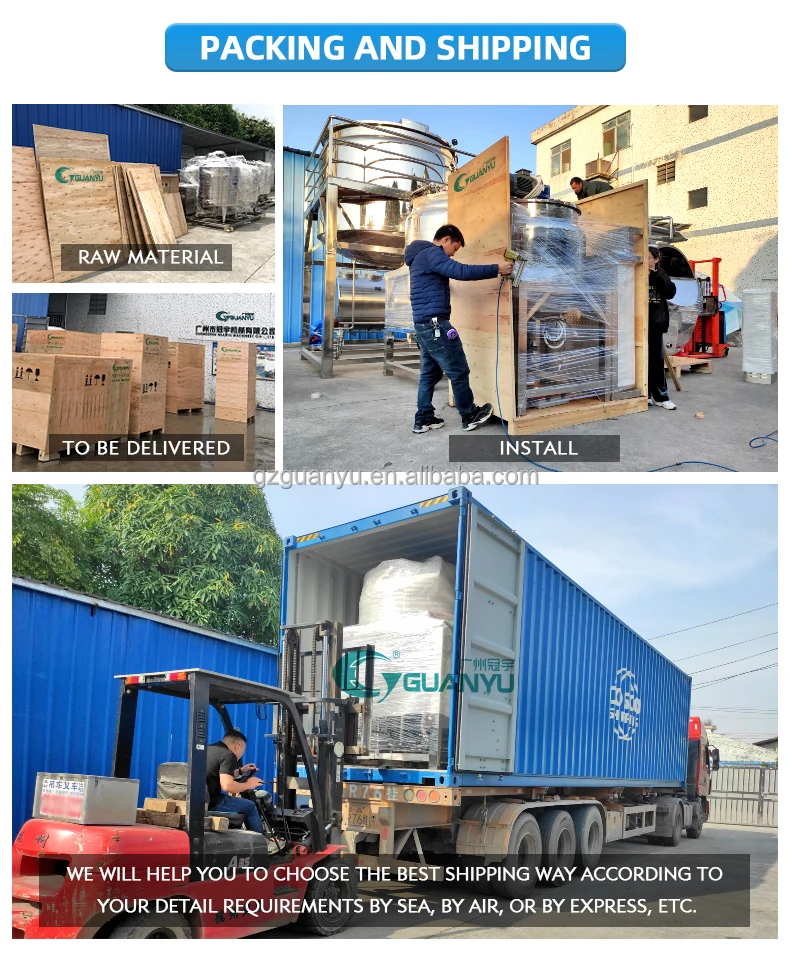

Packing & Shipping
Recommended by seller
FAQ
Q: Are you a factory?
A: Yes we are a factory with more than 20 years manufacturing experience. One is in Jjiangsu Province,
Another is in Guangzhou next to our office.
Q:I’m new in our industry,but I’m planing to set up a factory, what canI do?
A: We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. Also we would like to intro- duce some excellent suppliers of raw materials, bottles,labels, etc if needed. After sales, engineer will be send to fields installation, training and commissioning.
Q: How long is your warranty? After warranty, what if we encounter problem about the machine?
A: Our warranty is one year.After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot a solution video for you. If video doesn’t work out, we will send engineer to your factory.
Q: How can you control the quality before delivery?
A: First, our component/spare parts providers test their products before they offer com- ponents to us.Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we wil take a video to record the testing procedure and send the video to you.
Q:Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines’functions and to teach you how to use them.If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.
Q: Can I come to your factory to observe machine running?
A: Yes, customers are warmly welcome to visit our factory.
Q: Can you make the machine according to buyer’s request?
A: Yes,OEM is acceptable. Most of our machines are customized design based on cus- tomer’s requirements or situation.
A: Yes we are a factory with more than 20 years manufacturing experience. One is in Jjiangsu Province,
Another is in Guangzhou next to our office.
Q:I’m new in our industry,but I’m planing to set up a factory, what canI do?
A: We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. Also we would like to intro- duce some excellent suppliers of raw materials, bottles,labels, etc if needed. After sales, engineer will be send to fields installation, training and commissioning.
Q: How long is your warranty? After warranty, what if we encounter problem about the machine?
A: Our warranty is one year.After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot a solution video for you. If video doesn’t work out, we will send engineer to your factory.
Q: How can you control the quality before delivery?
A: First, our component/spare parts providers test their products before they offer com- ponents to us.Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we wil take a video to record the testing procedure and send the video to you.
Q:Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines’functions and to teach you how to use them.If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.
Q: Can I come to your factory to observe machine running?
A: Yes, customers are warmly welcome to visit our factory.
Q: Can you make the machine according to buyer’s request?
A: Yes,OEM is acceptable. Most of our machines are customized design based on cus- tomer’s requirements or situation.
