Stainless Steel Chemical Reactor Stirring Tank Chemical Reactor Chemical Mixing Tank Reactors With Heating

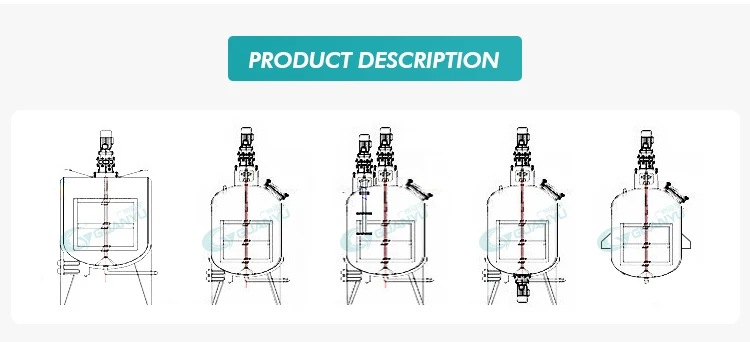

Products Description
This machine is designed especially for cosmetic which produce small batch high-class products and produce various kinds of products frequently, it is the first choice of hairdressing line. The best feature is, homogenizer is installed at the bottom to increase power which is very effective to high viscosity material. Main pot cover can raise and fall freely, it is easy to be cleaned thoroughly. It can pour material obliquely and ensure pouring material furthest and reduce waste. It is the first choice of medium and small sized enterprises and suitable to the products with big production cubage.
Specification | Working Volume(L) | Heating Method(optional) | Dimension(L*W*H)(m) | Weight(kg) |
GYE-50 | 50 | Electric heating or steam heating | 2.6*2.4*2 | 650 |
GYE-100 | 100 | 2.8*2.5*2.2 | 850 | |
GYE-200 | 200 | 3*2.8*2.3 | 1100 | |
GYE-500 | 500 | 3.3*3*2.5 | 1500 | |
GYE-1000 | 1000 | 4.2*3.5*3.8 | 2500 |
We can customize storage tanks according to your requirements | |
Material | SUS304/ SUS 316L |
Layer | Single layer/ double layers/ three layers |
Capacity | 50L~50,000L(customizable) |
Voltage | 110V~680V, can be customized |
Heating Type | electric/ steam heating / Coil heating |
The outer surface | Mirror polished or frosted |
Top | flate top with lid / closed cover |
Agitator Type | frame, anchor, paddle, turbine, propeller, etc. |
Equipment Accessories | quick-open manhole, sight glass, inspection light, thermometer, sample nozzle, air breathing apparatus, CIP cleaning system,cleaning ball, liquid inlet/outlet nozzle etc, |
Features | Stainless steel reaction kettle has the characteristics of rapid heating, high temperature resistance, corrosionresistance,hygiene, no environmental pollution, and convenient use. |
