Automatic 6 Nozzles Submerged filling machine with frame Cosmetic Cream Fluid Paste Body Lotion Shampoo Detergent Liquid Filler
Products Description
Number of filling heads: | Customizable |
Filling range: | 100ml-1000ml |
Filling form: | Servo-piston multi-head filling |
Filling speed: | 1400-1600 bottles/hour (calculated based on 100ml) |
Filling accuracy: | ±1% |
Air pressure: | 0.6-0.8MP |
Material: | 316# stainless steel |
Program control: | PLC+touch screen |
Touch screen control
Touch screen control panel makes it more convenient to adjust parameter.It can fill liquid by entering certain filling range,and the visual working data helps you fill liquid more accurately.

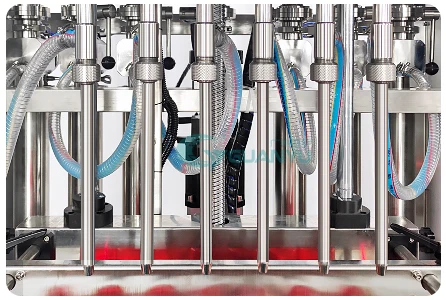

Filling nozzle
The filling nozzle is with anti-dripping design,ensure the production cleanli-ness.Each nozzle can be controlled separately.We can also customize 2/6/8 filling nozzle of this machine.

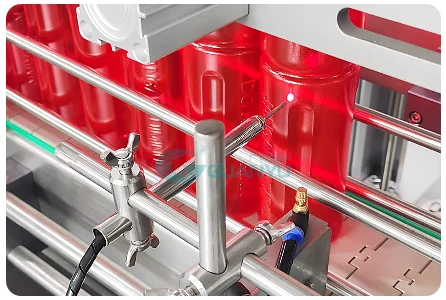

Light sensor
The electric eye is designed to detect bottles,prevent from missing or wasting bottles.It will not fill liquid if no bottle passes through,reduce production error.
Air cylinder
Large air cylinder ensure the machine work stably and fast.Make the machine suitable for fill paste and liquid.
Conveyor
With conveyor belt which can transfer bottles automatically,this machine can work with capping machine and labeling machine to realize automated production.Improve your working efficiency greatly.
Automatic feeding
The filling machine is equipped with a liquid level sensor. When the material in the hopper is lower than a certain position, it will be automatically fed through the feeding system (diaphragm pump/rotor pump/screw pump).
