2021 Hot Sales 500L Stainless Steel Liquid Shampoo Mixing Tank Jacket Heated Mixer Machine Gel Making Machine Stirrer
Products Description

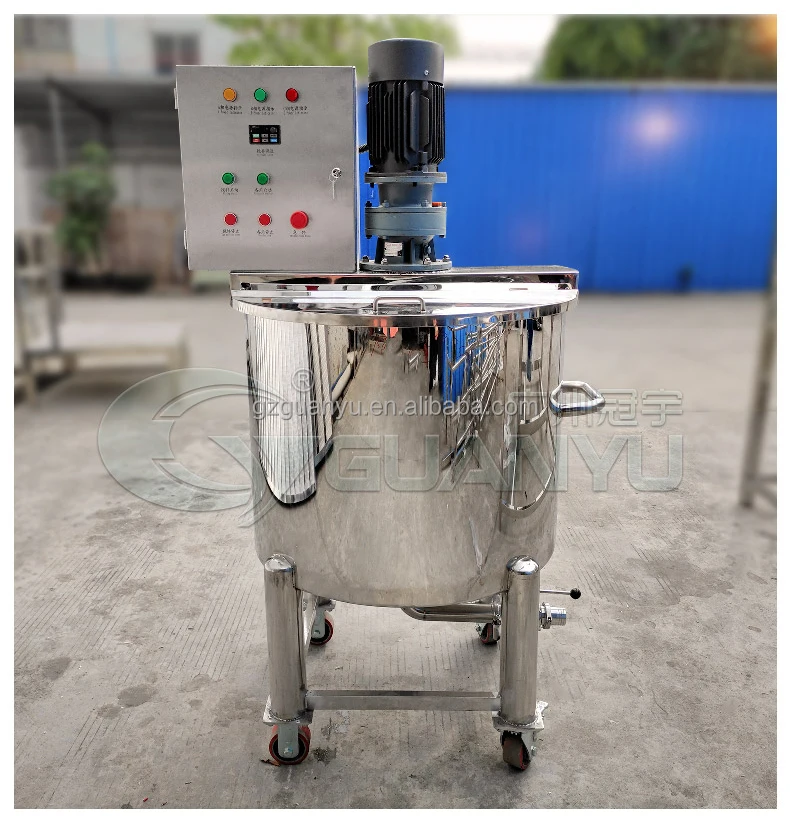

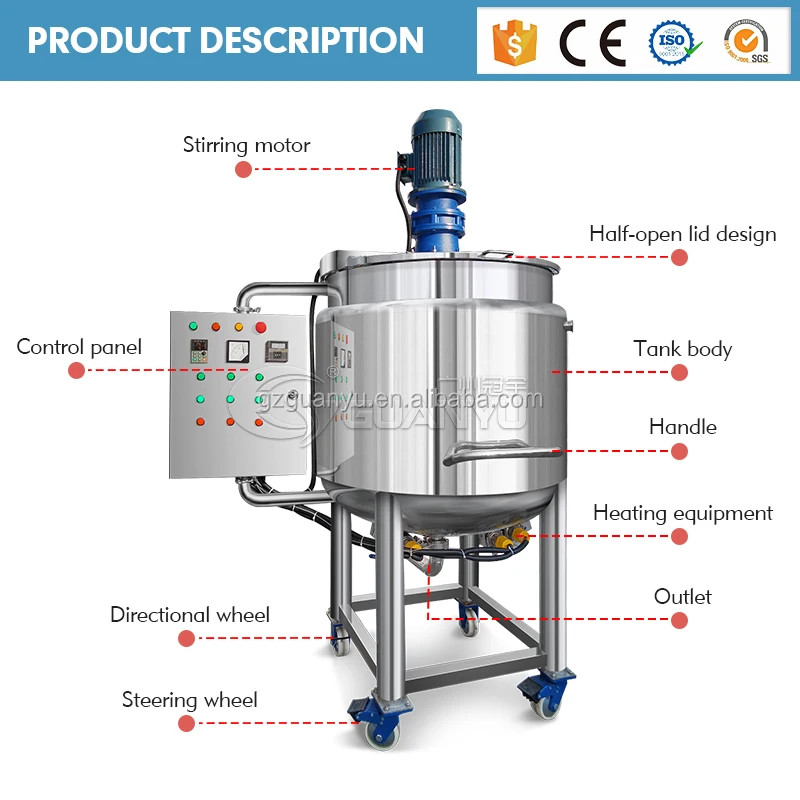

◭Stainless Steel Mixing Tank has mixing agitator,bottom homogenizer,stainless steel jacket tank shell,motor,electric control box,operation platform,staircase,etc.
◭The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolvemanyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm,the shear degree is about 0.2~5um.◭The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
◭We can choose PLC automatic control system ,or manual button control box,it depends upon your demand.
Model | Working Capacity (L) | Mixing Power (KW) | Mixing Speed (rpm) | Homogenizing Power(KW) | Homogenizing Speed(rpm) | Heating Method |
GYM-50 | 50 | 0.75 | 0~63 | 1.1~1.5 | 0~3500 | Electric Heating |
GYM-100 | 100 | 1.1 | 0~63 | 1.5~2.2 | 0~3500 | Electric Heating |
GYM-200 | 200 | 1.1~2.2 | 0~63 | 2.2~3.0 | 0~3500 | Electric Heating |
GYM-300 | 300 | 1.5~2.2 | 0~63 | 2.2~3.0 | 0~3500 | Electric Heating |
GYM-400 | 400 | 2.2~4.0 | 0~63 | 3.0~4.0 | 0~3500 | Electric Heating |
GYM-500 | 500 | 4.0~5.5 | 0~63 | 5.5~7.5 | 0~3500 | Electric Heating |
GYM-1000 | 1000 | 4.0~7.5 | 0~63 | 7.5~11 | 0~3500 | Electric Heating/ Steam Heating |
GYM-1500 | 1500 | 5.5~7.5 | 0~63 | 11~15 | 0~3500 | |
GYM-2000 | 2000 | 5.5~7.5 | 0~63 | 15~18.5 | 0~3500 | |
GYM-3000 | 3000 | 11~15 | 0~63 | 18.5~22 | 0~3500 | |
GYM-4000 | 4000 | 15~18.5 | 0~63 | 18.5~22 | 0~3500 | |
GYM-5000 | 5000 | 18.5~22 | 0~63 | 22~30 | 0~3500 |
Application

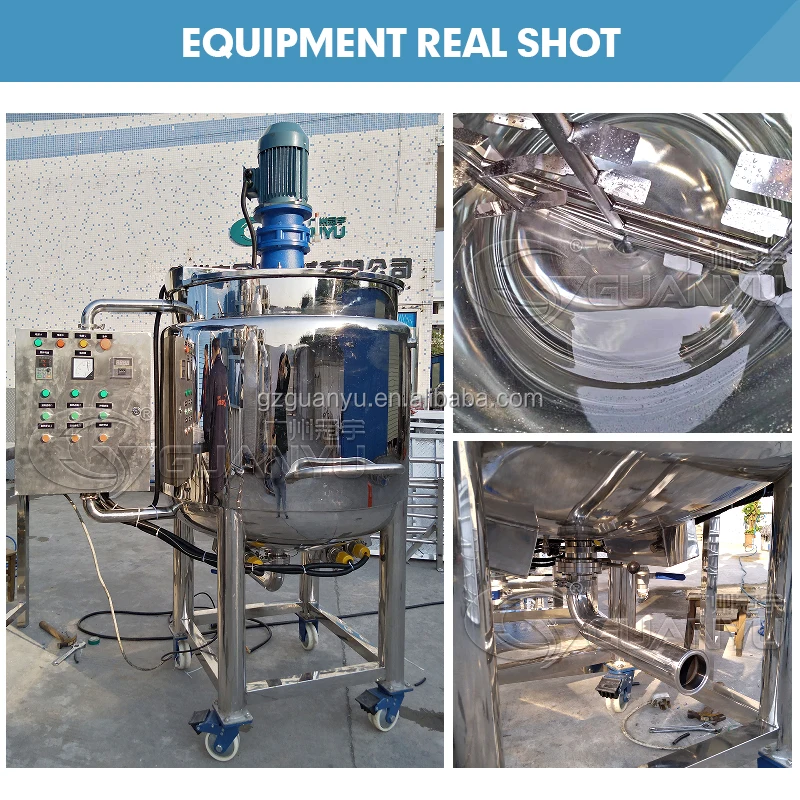

Real Shot Show
Customized Mixer

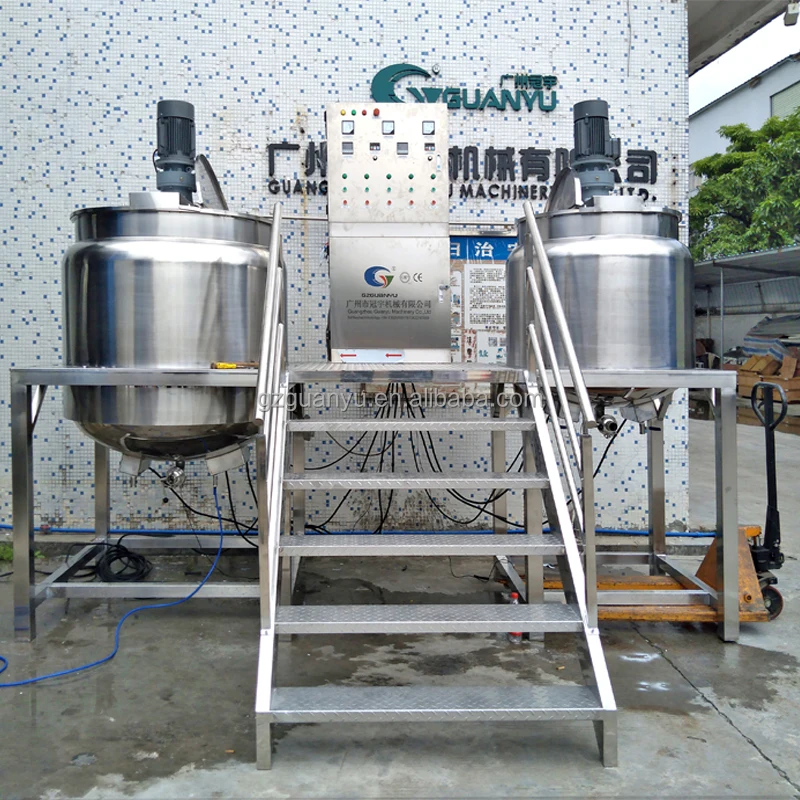

500L+1000L mixing tank
Electric heating, two mixing tank share one platform,staircase,electric control box. Widely used for making shampoo/conditioner/lotion/gel/liquid soap,etc
SS Mixing tank
Only single layer SS304/316L,for storage and mixing . Suit for cold processing products like liquid soap/detergent/hand sanitizer/ juice/etc

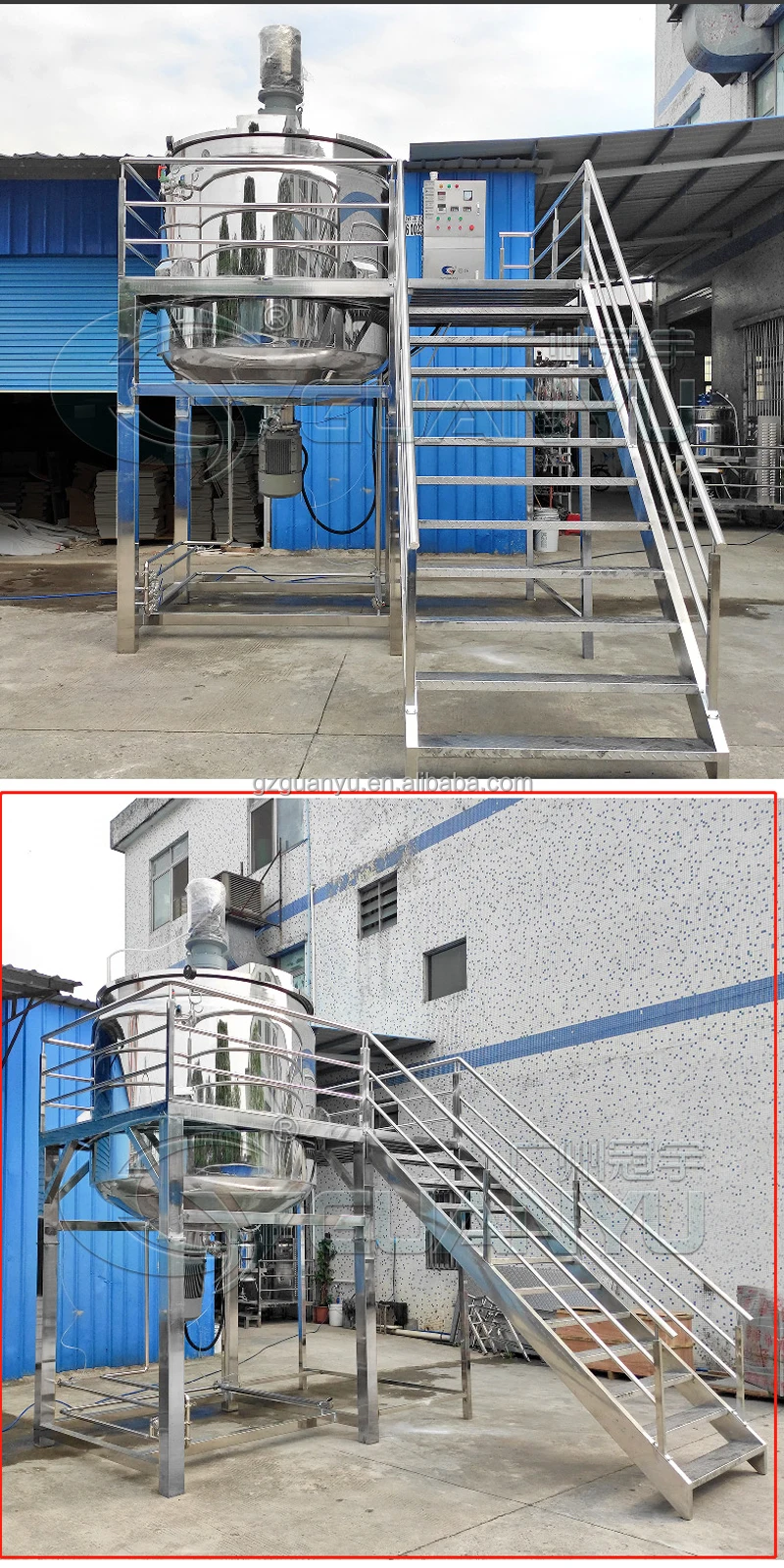

Steam heated mixing tank with homognizer
Top scraper mixing and bottom high shear homogenizer, especially for high viscosity products like hair wax/shaving cream/body lotion/etc
Recommended by seller
Company Profile
Business License/ CE Certificate /ISO 9001/etc
CE Certificate for Mixer ,Emulsifer,Filling Machine,etc.
Patent Certificates for Mixer, Vacuum Emulsifier Machine,Filling Machine,Facial Mask filing and sealing machine,etc
